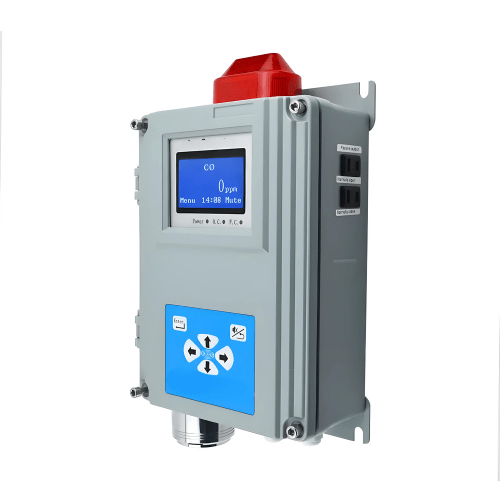

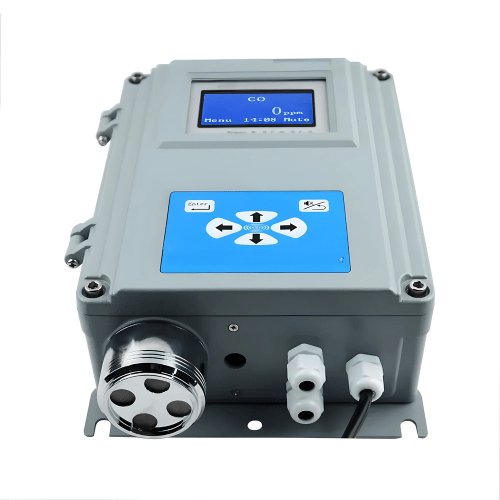

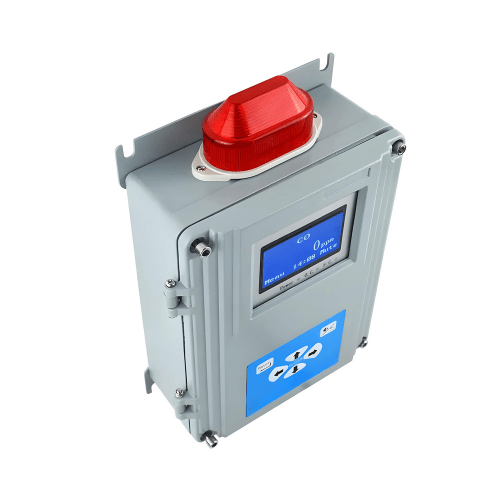

Acoustic Testing Pro Wall Mounted Gas Detector
Acoustic Testing Pro wall mounted gas detector CO O2 H2S CH4 gas leak alarm detector can continuous detect max 4 kinds of gases and display real-time at the same time, and alarming when the gas concentration exceeds the alarm points.
Overview
Acoustic Testing Pro wall mounted gas detector CO O2 H2S CH4 gas leak alarm detector can continuous detect max 4 kinds of gases and display real-time at the same time, and alarming when the gas concentration exceeds the alarm points. Other gases also can be combined flexibly.
Features
- Continuous detection by natural diffusion
- Max 4 kinds of gases can be detected at the same time
- LCD with 4 gases real value, as well as year and time
- Intelligent audible and visual alarms
- Imported sensitive sensors
- AC 110 V to 220 V working power supply
- Can store 3000 alarm records, view by buttons or connect to PC
- Intelligent design, simple operation, easy calibration, zero, alarm settings
- High precision, strong anti-interference ability, long service life

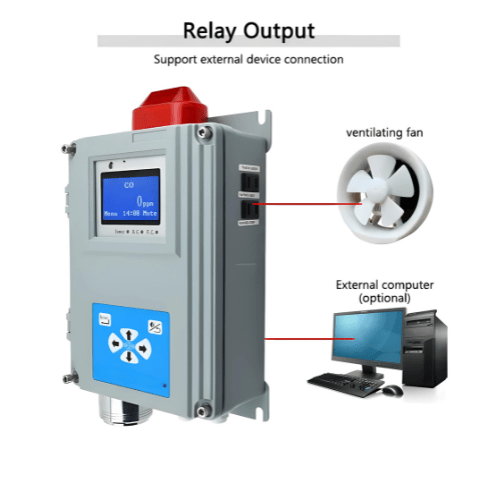

- Can output relay control signals, metal shell, strong and durable
- Support customization for any kind of gases
- Optional RS485 output module, easy to connect with DCS and other monitoring
Technical Specifications
| Gas detected | LEL O2 CO H2S (Can be combined flexibly） |
| Measuring range | LEL: 0% LEL to 100 % LEL O2: 0% VOL to 30% VOL CO: 0 ppm to 1000 ppm H2S: 0 ppm to 200 ppm |
| Resolution | LEL: 1% lel, O2: 0.1% vol, CO or H2S: 1 ppm |
| Sensor | Electrochemical (CO H2S O2) + catalytic (LEL) |
| Alarms | Audible ≥80 dB audible Visible flashing red LED |
| Alarm point | High and low, fully adjustable |
| Working voltage | AC 220 V 50 HZ |
| Display | Liquid Crystal Display (LCD) |
| Storage | Can save 3000 alarm records |
| Digital interface | RS 485 output interface Modbus RTU (optional) |
| Standard package | Gas detector, Instruction in English, Certificate, carton package |
| Humidity range | 10 % RH to 90％ RH No condensation |
| Temperature range | -4 °F to 122 °F (-20 ℃ to 50 ℃) |

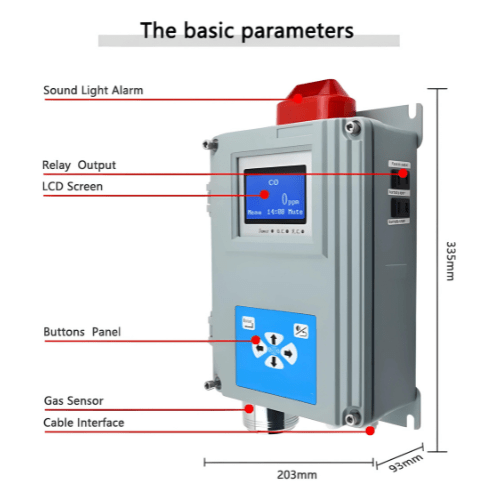

| Dimension | 7.99 in x 13.15 in x 3.70 in (203 mm x 334 mm x 94 mm) |
| Weight | 6.83 lb (3.1 kg) |
