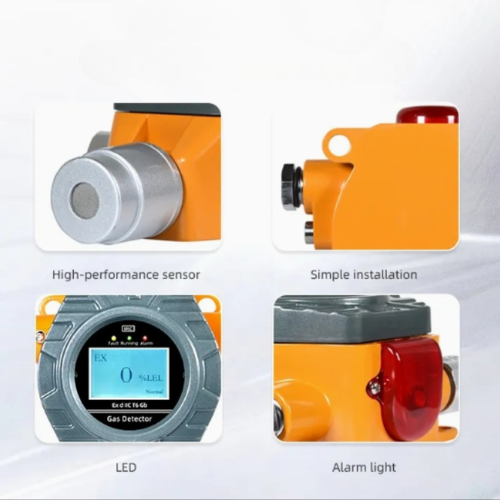

Stationary Single Gas Detector – Acoustic Testing Pro
Fixed-point single-gas detector for combustible, toxic, or oxygen monitoring, using natural diffusion and multiple sensing principles with RS-485/4–20 mA outputs and IP66 housing.
Overview
This product is a robust, stationary single-gas detector designed for continuous monitoring of various gases including combustible gases, toxic gases, and oxygen. It supports multiple sensor technologies—catalytic, electrochemical, semiconductor, and infrared. The device operates via natural diffusion, offers real-time LCD/LED gas concentration display, and is configurable via infrared remote without opening the enclosure. It supports multiple output protocols (4–20 mA, RS-485, or two-wire systems) and features IP66-rated protection, explosion-proof housing, and flexible configuration.
Features
- Supports detection of combustible, toxic, or oxygen gases using multiple sensing principles (catalytic, electrochemical, semiconductor, infrared)
- Sampling mode: natural diffusion
- Real-time display via LCD and LED indicators
- Remote configuration via infrared without opening the device
- Flexible output options: 4–20 mA, RS-485, or two-wire signal for long-distance transmission
- Explosion-proof, flame-proof housing (Ex d II C T6 Gb) with IP66 ingress protection
- Fast response time (< 15 s) and quick recovery (< 30 s)
- Compact and lightweight
Technical Specifications
| Specification | Value |
| Detection Principle | Catalytic / Electrochemical / Semiconductor / Infrared |
| Detection Range | 0–100% LEL; other PPM ranges depending on sensor |
| Resolution | 1% LEL; 1 ppm / 0.1 ppm |
| Accuracy (Full Scale) | ±3% FS |
| Response Time | <15 seconds |
| Recovery Time | <30 seconds |
| Display | LCD and LED indicators |
| Configuration | Infrared remote control |
| Power Supply | DC-24 V ± 10% |
| Output Options | 4–20 mA, RS-485, or two-wire signal |
| Power Consumption | ≤ 3 W |
| Operating Temp | –40 °C to 70 °C (combustibles); –20 °C to 50 °C (toxic) |
| Ingress Protection | IP66 |
| Explosion-Proof Rating | Ex d II C T6 Gb |
| Weight | ≤ 1.5 kg |
| Dimensions | 185 × 180 × 80 mm |
