Coating Thickness Gauge, Portable Paint Thickness Gauge – Acoustic Testing Pro

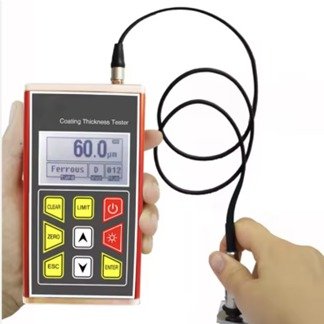

Magnetic-based coating thickness gauge featuring a 2.4″ color IPS LCD, robust waterproof design, data storage, and USB connectivity. It measures zinc and other non-magnetic coatings on magnetic metal substrates up to 3000 µm and includes user-friendly features for industrial inspection applications.
Features
- Magnetic + Waterproof – Reliable in tough environments
- Wide Range – 0–3000 µm coating thickness
- Color Screen – Easy-to-read display
- USB Port – For quick data offload
- Probe Flexibility – Supports multiple probe types
- Upgraded Design – New 2021 enhancements from CM10 base
Technical Specifications
| Specification | Details |
| Measuring Principle | Magnetic method |
| Display | 2.4 in color IPS LCD (320 × 240 pixels) |
| Measuring Range | 0 to 3000 µm (0 to 3.0 mm ≈ 0 to 0.12 in) |
| Storage Capacity | 200 files, each holding 1000 measurements plus 6-statistic summaries |
| Communication Port | USB 2.0 (Full Speed) |
| Power Supply | 2 × AA batteries |
| Measurement Units | Micrometers, millimeters or mils |
| Product Weight | 5.07 lb (2.30 kg) |
| Dimensions (L × W × H) | 300x200x150 mm |
