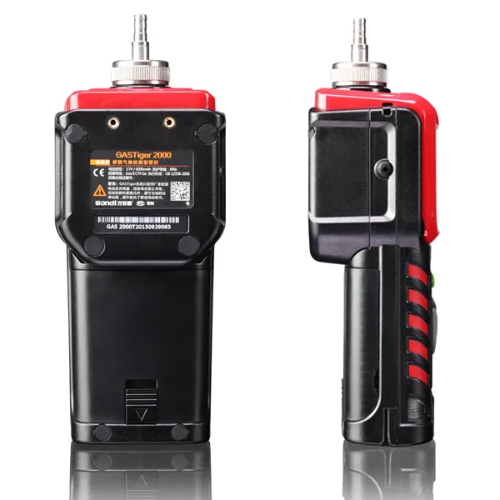

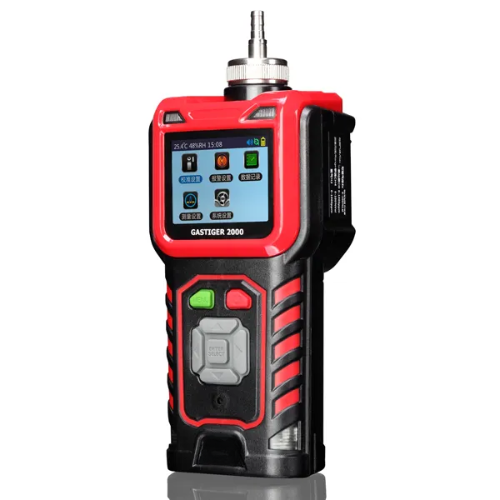

Acoustic Testing Pro Portable Multi Gas Detector
Acoustic Testing Pro Portable Multi Gas Detector uses imported high-performance CO H2S O2 and CH4 sensors, which is an intelligent high-performance detection alarm that can continuously detect and monitor CO H2S O2 and CH4 gas with the function of people falling alarm.
Overview
Acoustic Testing Pro Portable Multi Gas Detector uses imported high-performance CO H2S O2 and CH4 sensors, which is an intelligent high-performance detection alarm that can continuously detect and monitor CO H2S O2 and CH4 gas with the function of people falling alarm. It has built-in temperature and humidity sensors, displaying temperature and humidity in real time. GASTiger2000 wireless function allows the security personnel to get real-time equipment data and alarm status in any place. Visual data displays, a large 2.3-inch full-color screen and quicker response time help improve personnel safety and protection to a whole new level.
Features
- High-performance sensor with 2 years to 3 years of service life
- Active pump suction for rapid, accurate response
- Built-in temperature and humidity sensors for real-time monitoring
- Intelligent compensation algorithms for precise measurements
- 2.3-inch full-color screen with clear visibility in all conditions
- User-friendly interface with switchable units and languages
- Long-lasting 6000mAh lithium battery, versatile charger
- Real-time data transmission in various alarm modes
- Rugged, waterproof, and anti-corrosion design (IP 66)
- Flexible data storage and retrieval options
- Built-in wireless module for data transmission
- Supports USB data download and wireless printing
Technical Specifications
| Name | Portable multi-gas detector |
| Model | Gasteiger 2000 |
| Detection gas | CO H2S O2 and CH4 gas in air |
| Working principle | Electrochemical |
| Detection range | 0 ppm to 50 ppm, 0 ppm to 100 ppm, 0 ppm to 200 ppm, 0 ppm to 500 ppm, 0 ppm to 1000 ppm, 0 ppm to 2000 ppm, 0 ppm to 5000 ppm (optional) |
| Resolution | 0.01 ppm (0 ppm to 100 ppm); 0.1ppm (0 ppm to 1000 ppm); 1 ppm (>1000 ppm) |
| Sampling method | Active pump suction, built-in air pump can open or close independently Flow speed: 500 mL/min |
| Accuracy | ≤±3% F.S. |
| Repeatability | ≤±1% |
| Zero drift | ≤±1% (F.S./year) |
| Response time | ≤20 s (T 90) |
| Recovery time | ≤30 s |
| Shell material | High strength abrasion resistant polycarbonate enclosure Stainless steel |
| Battery | Standard 6000 mAh capacity lithium battery, more than 30 hours continuous working time, charging time less than 7 hours, support mobile power supply and charging, USB port mobile phone charger compatible. |
| Charger | Standard 5V 2.1 A USB quick charger, plug removable, each charger is equipped with four plugs (US, Europe, UK/HK, AU standard). |
| Alarm method | Sound alarm 95 dB, red LED alarm light, personnel falling alarm, short distance wireless and long-distance GPRS alarm. |
| Alarm value setting | A1 alarm value, A 2 alarm value TWA, STEL, and low-concentration alarm values can be set individually. |
| Screen | 2.3 in TFT |
| Backlight | Manual, automatic when alarming |
| Button | 7 buttons navigation |
| Direct reading | Measured value, data logging status, pump working status, environment temperature and humidity, maximum value, minimum value, average value |
| Data storage | Auto storage, manual storage, and single point storage. Storage interval can be customized and 300,000 groups of data can be stored with date/time data, if matching micro-SD memory card, then can store 10 million or more; with data recovery function can choose part or all of data recovery. |
| Data download | Support USB data download; support GPRS wireless transmission (optional) |
| Data print | Support micro-portable printer, and Bluetooth wireless printing. |
| Calibration | 3 levels to 8 levels of the target-point automatic calibration, can set the calibration certified value, zero setting. |
| Explosion-proof | Exd Ⅱ CT4 Ga (Intrinsically Safe) |
| Protection class | IP 66 (water and dust proof) |
| Operation mode | User mode, administrator mode |
| Working humidity | 0% RH to 95% RH (Non-condensing) |
| Working temperature | -40 °F to 158 °F (-40 ℃ to 70 ℃) |

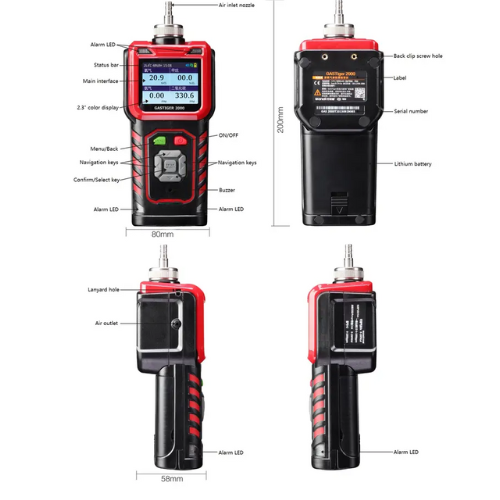

| Dimensions | 3.15 in × 7.87 in × 2.28 in (80 mm × 200 mm × 58 mm) |
| Weight | 1.15 lb (520 g) |
