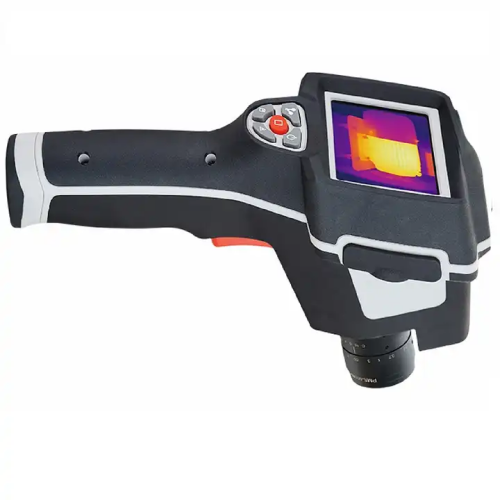

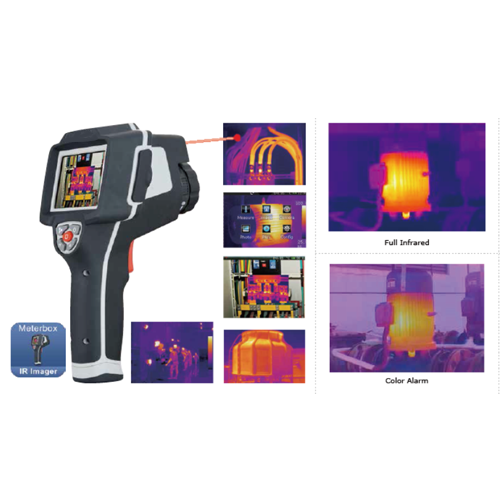

Acoustic Testing Pro High Temperature Short Wave Thermal Imager
Acoustic Testing Pro high temperature short wave thermal imager is high performance for 800 nm to 1100 nm infrared image, which is for temperature measurement above 1112 °F (600 ℃).
Overview
Acoustic Testing Pro high temperature short wave thermal imager is high performance for 800 nm to 1100 nm infrared image, which is for temperature measurement above 1112 °F (600 ℃). Short wave thermal imager is widely used for continuous inspection of High-temperature industrial furnaces, such as the petrochemical industry, paper pulp, etc.
Feature
- High resolution 640 pixels x 512 pixels
- Wide Temperature Range targeting electrical and industrial applications
- ±2% Accuracy for reliable temperature measurement
- Thermal imaging through the glass or other transparent medium
- Capacitive touch screen is easier, more productive, and more effective to operate it
- Lithium polymer rechargeable battery lasts >4 hrs continuous use
- Replaceable
- High performance with a built-in Linux system
Technical Specifications
| Field of view | 22° × 17.6° |
| Spatial resolution | 0.6 mrad |
| Thermal Sensitivity | <33.8 ℉ (1 ℃) at 1112 ℉ (600℃) |
| Image Frequency | 30 Hz |
| Focus mode | Fixed |
| Focal length | 0.984 in (25 mm) |
| Focal Plane Array (FPA)/Spectral range | Wide Dynamic Range CMOS/0.8 μm to 1.1μm |
| IR resolution | 640 pixels × 512 pixels |
| Display | Capacitive Touch screen, 3.5 in LCD |
| Image modes | IR image |
| Accuracy | ±35.6 ℉ (±2 ℃) or±2% of reading |
| Line | 2 lines (horizontal and vertical) |
| Area | 3 boxes with max/min/average |
| Automatic hot /cold detection | Auto hot or cold spot meter markers |
| Emissivity correction | Variable from 0.01 to 1.0 |
| Measurement Corrections | Emissivity, ambient temperature, distance, relative humidity, offset temperature |
| Storage Media | 4 GB Micro SD card |
| Video Storage Format | Standard MPEG-4, 640 x 480 at 30 fps, on memory card >60 min |
| Video Storage Mode | IR / visual images; simultaneous storage of IR and visual images |
| Image Storage Format | Standard JPEG, including measurement data, on a memory card >1000 pictures |
| Image Storage Mode | IR images |
| Set-up commands | Local adaptation of units, language, date and time formats, information of camera |
| Languages | Multinational |
| USB | Data transformation between camera and PC |
| Battery | Lithium polymer battery, 4.5 hrs operating time |
| Input Voltage | DC 9 V to 12 V |
| Charging System | In camera (AC adapter) |
| Power Management | Automatic shutdown and sleep mode (user-selectable) |
| Dimension | 9.567 in x 4.055 in x 6.300 in (243 mm x 103 mm x 160 mm) |
| Weight | 2.03 lb (920 g) |
| Object Temperature Range | 1112 ℉ to 632 ℉ (600 ℃ to 2000 ℃) |
