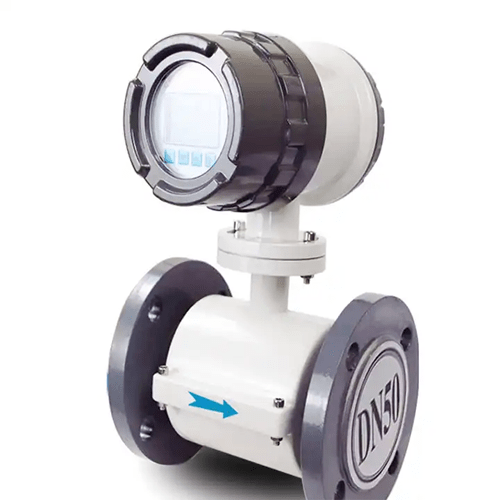

Acoustic Testing Pro Electromagnetic Water Flow Meter
This electromagnetic water flow meter has aperture diameter of DN 10 to DN 1200, measuring flow velocity of <15 m/s and ingress protection IP 68, IP 65.
Technical Specification
| Aperture Diameter | DN 10 to DN 1200 |
| Rated Pressure Grade | DN 6 to DN 80, ≤1.6 MPa; DN 100 to DN 250, ≤1.0 MPa; DN 300 to DN 1200, ≤0.6 MPa |
| Lining Material | teflon, rubber, etc. |
| Electrode | Stainless steel 316 L, Hastelloy (HB and HC), Titanium, Tantalum, Platinum |
| Ingress Protection | IP 68, IP 65 for Customized |
| Measuring Flow Velocity | <15 m/s |
| Medium Temperature | Ordinary rubber lining : -4 °F to 140 °F (-20 °C to 60 °C) High temperature rubber lining : -4 °F to 194 °F (-20 °C to 90 °C) Ptfe lining : 26.6 °F to 212 °F (-30 °C to 100 °C) High temperature teflon lining : -4 °F to 356 °F (-20 °C to 180 °C) |
