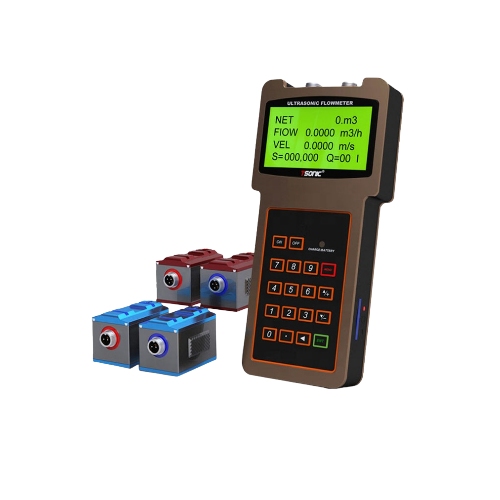

Portable Ultrasonic Flow Meter Handheld Clamp-On Liquid Sensor – Acoustic Testing Pro

Handheld portable ultrasonic flow meter with clamp-on design, ±1% accuracy, 4-20mA/pulse output, suitable for various liquid measurements.

SKU: ACTPUFM-003 Category:

Features

  • Handheld and portable clamp-on design for easy installation
  • High accuracy: ±1% with excellent repeatability
  • Supports 4 to 20mA and pulse signal outputs
  • Suitable for various liquids: water, oil, chemicals
  • Operates in wide temperature range: -22 to 320 °F (-30 to 160 °C)
  • IP67/IP68 protection for harsh industrial environments
  • Easy-to-read digital display with backlight
  • Ideal for industrial, field, and laboratory applications



Technical Specification

Parameter Specification
Flow Rate Range 0 to ±10 m/s, forward or reverse measurement
Measurement Accuracy ±1%
Pipe Diameter DN15 to DN6000
Fluid Types Water, sea water, sewage, acid and alkali
Pipe Material Steel, stainless steel, cast iron, copper, PVC
Communication Interface Isolated RS485 serial interface, supports MODBUS protocol
Data Storage SD card regularly stores measurement results (optional)
Power Supply DC8 to 36V or AC85 to 264V
Signal Output 1 channel 4 to 20mA current output
Signal Input 3 channels 4 to 20mA current input (optional)
Temperature -22 to 320 °F (-30 to 160 °C)
Weight 3.31 lb (1.5 kg)
Size / Dimension 5.91 in x 3.15 in x 1.97 in (150 mm x 80 mm x 50 mm)
