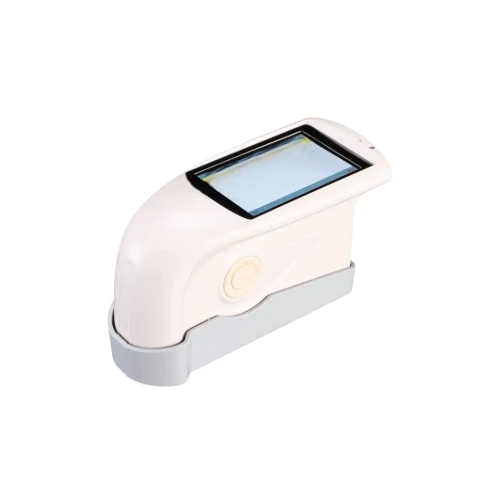

Portable High – Precision Digital Gloss Meter – Acoustic Testing Pro
Acoustic Testing Pro presents the Portable High-Precision Digital Gloss Meter, a versatile device designed for accurate gloss measurement across a wide range of materials.
Overview
Acoustic Testing Pro presents the Portable High-Precision Digital Gloss Meter, a versatile device designed for accurate gloss measurement across a wide range of materials. This product features a 60° measuring angle, making it ideal for semi-gloss surfaces, and complies with international standards such as ISO 2813, GB/T 9754, ASTM D523, and ASTM D2457.It can measure gloss levels from 0 to 1000 GU and is suitable for applications in paints, inks, stoving varnishes, coatings, wood products, marble, granite, polished tiles, pottery, plastics, paper, and hardware industries. This device offers multiple measurement modes, including basic, statistical, continuous, and QC measurement (via compatible software), allowing for both single-point and uniformity testing over larger areas. This product supports PC connectivity for data transfer and extended functionality. It features a large 3.5-inch capacitive touch screen, easy manual input, and stores up to 5000 measurement records. Equipped with a rechargeable lithium-ion battery, It ensures long-lasting operation and convenient portability. With its compact design, user-friendly interface, and robust functionality, this device provides precise, reliable gloss measurements for a wide variety of industrial and laboratory applications.
Features
- 60° measuring angle for accurate semi-gloss readings
- Measures gloss from 0 to 1000 GU across multiple materials
- Multiple modes: basic, statistical, continuous, and QC measurement
- High accuracy with repeatability ±0.1–0.2 GU / ±0.2%
- Large 3.5-inch capacitive touch screen for easy operation
- Stores up to 5000 measurement records
- USB/RS-232 connectivity for PC data transfer
- Compact and lightweight design (350g) for portability
- Built-in rechargeable Li-ion battery for long-lasting use
- Complies with ISO 2813, GB/T 9754, ASTM D523/D2457, JJG696
- Ideal for paint, coatings, wood, marble, granite, plastics, paper, and hardware
- Optional miniature printer for on-site reporting
Technical Specifications
| Measure Angle | 60° Comply with standard ISO 2813、GB/T 9754、ASTM D 523、ASTM D 2457 |
| Measuring Area (mm) | 0.35 in × 0.59 in (9 mm x 15 mm) |
| Measurement Range | 0 GU to 1000GU |
| Division Value | 0.1 GU |
| Measurement Range Repeatability Reproducibility | 0 GU to 10 GU ; 10 GU to 100 GU ; 100 GU to 1000 GU ± 0.1GU ± 0.2GU ± 0.2%GU ± 0.2GU ± 0.5GU ± 0.5%GU |
| Measurement Standard | Conform with JJG696 first class gloss meter working requirement |
| Chromaticity Corresponding | Corresponding with CIE 1931(2°) under CIE C light source |
| Errors | ±1.2 , ± 1.2% |
| Measuring Time | 0.5s |
| Battery | 3.7V,3200 mAh Li-ion Battery, >10000 times(within 8 hours) |
| Viewing Screen | TFT 3.5 inch, capacitive touch screen |
| Interface | USB/RS-232 |
| Data Save | Basic mode: 1000, Statistical Mode: 5000, Continuous mode : 5000 |
| Software | GQC6 Quality Control Software with QC report printing functions and more extended functions. |
| Operation Temperature | 32 °F to 104 °F (0 ℃ to 40 ℃) |
| Storage Temperature | 4 °F to 122 °F (-20 ℃ to 50 ℃) |
| Humidity | < 85% relative humidity, no condensation |
| Standard Accessories | Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate |
| Optional Accessories | Miniature Printer |
| Dimension (L x W x H) | 6.30 in × 2.95 in × 3.54 in (160mm x 75mm x 90mm) |
| Weight | 12.35 oz (350g) |
