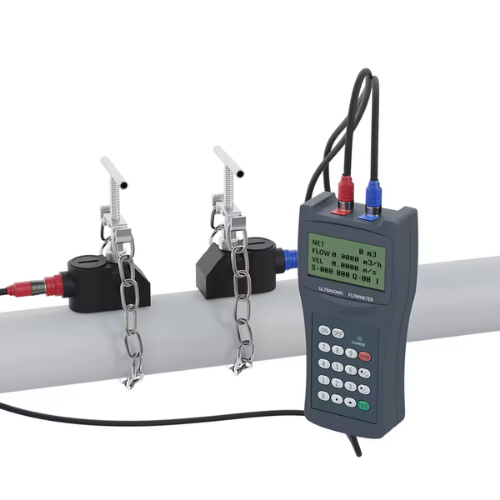

Portable Handheld Ultrasonic Water Flow Meter – Acoustic Testing Pro
Portable handheld ultrasonic flow meter for accurate liquid measurement, DN32-DN6000 pipe size, battery powered.
Features
- Portable and handheld design
- Pipe size range: DN32–DN6000
- Accuracy: ±1.0%
- Works with most liquids
- Built-in battery (10 hours use)
- RS232 & MODBUS communication
- Supports medium temperature up to 160℃
Technical Specifications
| Accuracy | 0.5% |
| Range | 16.40 ft or 32.81 ft (5 m or 10 m) |
| Resolution | 0.04 in or 0.1% (1 mm or 0.1%) |
| Display Screen | LCD display |
| Analog Output | Two-wire 4 to 20 mA at 500 Ω load |
| Relay Output | Optional 2 sets of AC 250 V at 3 A |
| Power Supply | 14 to 28 VDC (two-wire system) |
| Communication | RS485 |
| Ingress Protection | Display meter IP65, probe IP68 |
| Working Environment Temp. | 32 °F to 122 °F (0 °C to 50 °C) |
| Storage Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
