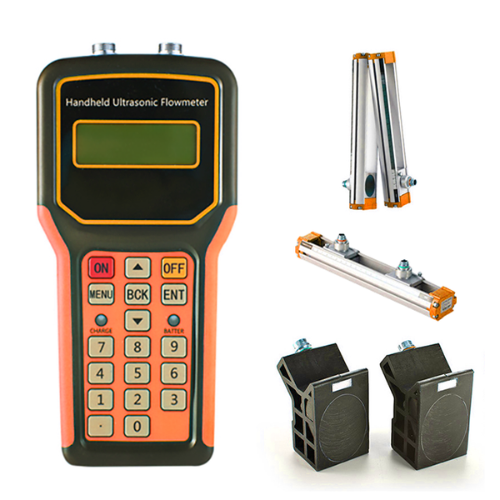

Portable Handheld Ultrasonic Flowmeter with OEM Support – Acoustic Testing Pro
Acoustic Testing Pro Portable Handheld Ultrasonic Flowmeter offers accurate, clamp-on fluid measurement with OEM support for industrial and lab use.
Features
- Handheld ultrasonic flowmeter, portable and easy to use
- Clamp-on installation, no pipe cutting needed
- Measures flow rates up to 10 m/s
- Pipe diameter range: DN50–DN700mm
- Temperature range: 0–160°C
- Accuracy: ±1.5% (±1% after calibration)
- Supports OEM and ODM customization
- Power supply: 20–30V DC
- Suitable for metal and plastic pipes
Technical Specification
| Parameter | Specification |
| Pipe diameter | DN50 to DN700mm (1.97 in to 27.56 in) |
| Flow rate | 10 m/s (32.81 ft/s) |
| Accuracy | ±1.5%, ±1% after calibration |
| Power supply | 20 to 30 V DC |
| Temperature | 32 °F to 320 °F (0 °C to 160 °C) |
| Weight | — lb (enter product weight here) |
| Size / Dimension | — in (enter dimensions here) |
