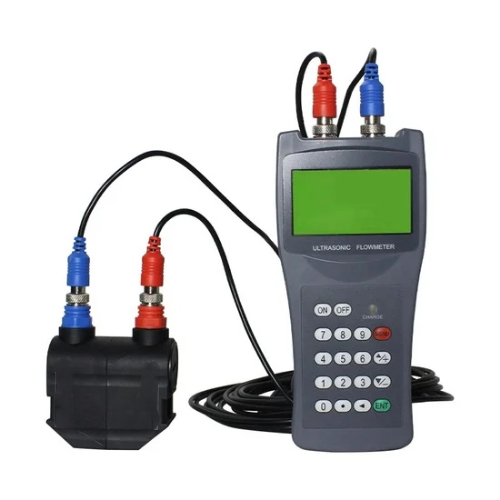

Portable Handheld Clamp-On Ultrasonic Flow Meter – Acoustic Testing Pro
Compact ultrasonic flow meter, USB-enabled, ±32 m/s velocity, supports large pipe ranges, suitable for wastewater monitoring.
Features
- Type: Ultrasonic Flow Meter, handheld & portable
- Pipe Range: DN15–DN6000 mm
- Velocity: ±32 m/s
- Accuracy: Linearity 0.5%, Repeatability 0.2%
- Communication: RS485, user-configurable response time
- Housing: Durable ABS
- Weight: 514g with batteries
- Power: Battery-operated, portable design
- Customization: OEM/ODM supported
- Warranty: 1-year, free replacement parts & online support
Technical Specification
| Specification | Details |
| Type | Ultrasonic Flow Meter |
| Product Name | Handheld Ultrasonic Flow Meter |
| Keywords | Ultrasonic Flow Meter |
| Response Time | 0 to 999 seconds, user-configurable |
| Velocity | ±32 m/s |
| Pipe Size | DN15 to DN6000 |
| Linearity | 0.5% |
| Repeatability | 0.2% |
| Housing Material | ABS |
| Handset Weight | 1.13 lb (514 g) |
