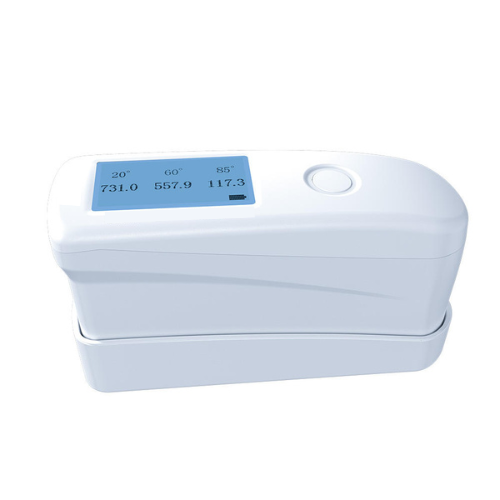

Multi – Angle Gloss Meter Simultaneous Measurement – Acoustic Testing Pro
Acoustic Testing Pro – Multi-Angle Gloss Meter Simultaneous Measurement offers three-angle surface gloss measurements for tiles, coatings, inks, plastics, ceramics, paper, stones, and metals.
Overview
Acoustic Testing Pro – Multi-Angle Gloss Meter Simultaneous Measurement offers three-angle surface gloss measurements for tiles, coatings, inks, plastics, ceramics, paper, stones, and metals. It features simultaneous measurements at 20°, 60°, and 85° and a wide range up to 2000 GU, capable of testing high-gloss and specular reflective materials quickly. This device supports both normal mode for instant readings and QC mode for automatic pass/fail assessment, improving efficiency.
Features
- Measures surface gloss at 20°, 60°, and 85° simultaneously in a single test.
- Wide measuring range: 0–2000 GU (20°), 0–1000 GU (60°), 0–160 GU (85°).
- High accuracy with repeatability ±0.2 GU (0–120 GU) and ±0.2 % (120–2000 GU).
- Fast measurement with results displayed instantly.
- Supports normal mode (for standard reading) and QC mode (for pass/fail evaluation).
- Equipped with a 240 × 128 dot-matrix display for clear readings.
- Data storage capability with USB Type-C charging and data transfer.
- Rechargeable lithium battery (3.7 V, 2000 mAh) for long operating time.
- Lightweight and portable (approx. 0.66 lb / 300 g).
- Applications: coatings, inks, plastics, paper, ceramics, stones, metals, and reflective materials.
Technical Specifications
| Specification | Details |
| Measuring Angles | 20° or 60° or 85° (simultaneous) |
| Measuring Light Spot | 20°: 0.35 in x 0.35 in (9 mm x 9 mm); 60°: 0.35 in x 0.59 in (9 mm x 15 mm); 85°: 0.20 in x 1.50 in (5 mm x 38 mm) |
| Minimum Test Material Size | 2.24 in x 0.39 in (57 mm x 10 mm) |
| Measuring Range | 20°: 0 to 2000 GU; 60°: 0 to 1000 GU; 85°: 0 to 160 GU |
| Resolution | 0.1 GU |
| Repeatability | 0 to 120 GU: ±0.2 GU; 120 to 2000 GU: ±0.2% |
| Reproducibility | 0 to 120 GU: ±0.5 GU; 120 to 2000 GU: ±0.5% |
| Zero Error | 0.1 GU |
| Indication Error | 0 to 120 GU: ±1.5 GU; 120 to 2000 GU: ±1.5% |
| Power Supply | Lithium rechargeable battery, 3.7 V at 2000 mAh |
| Display | 240 x 128 dot-matrix |
| Charging/Data Port | USB Type-C |
| Battery Life | Over 65 hours (on full charge) |
| Standards Compliance | ISO 2813, ISO 7668, ASTM D523, ASTM D2457, DIN 67530 |
| Operating Temperature | 50 °F to 113 °F (10 °C to 45 °C); 0 to 85% RH (no condensation) |
| Storage Temperature | 14 °F to 140 °F (–10 °C to 60 °C); 0 to 85% RH (no condensation) |
| Product Weight | 10.6 oz (0.66 lb or 300 g) |
| Product Size (L x W x H) | 5.51 in x 1.89 in x 2.95 in (140 mm x 48 mm x 75 mm) |
