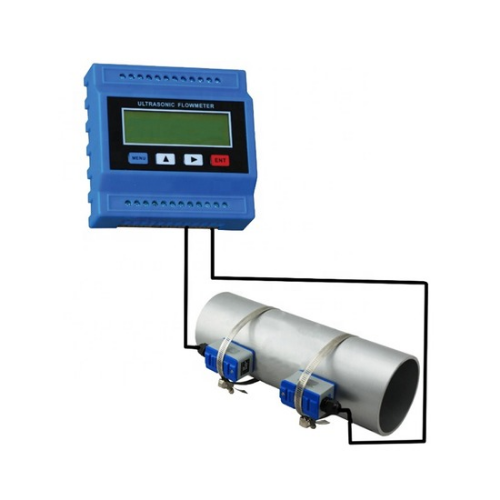

High Precision Ultrasonic Water Flow Meter – Acoustic Testing Pro
High-precision ultrasonic water flow meter with clamp-on design, non-invasive measurement, ±0.5% accuracy for pipes DN15–DN6000.
Features
- Measures water flow accurately (±1%)
- Velocity range: 0.03–32 m/s
- Repeatability: 0.2%
- Fast measurement: 0.5s update period
- Analog & digital output: 4-20mA / RS485
- Power supply: 220VAC / 8–36VDC
- Operates in extreme temps: -40°C to +160°C
- Supports OEM customization
- CE certified
- Compact, lightweight design for easy installation
Technical Specification
| Specification | Details |
| Principle | Transit-time ultrasonic flowmeter |
| Accuracy | ±1% |
| Signal Output | 1 way 4 to 20 mA output, electric resistance 0 to 1K, accuracy 0.1% (optional)1 way OCT pulse output (Pulse width 6 to 1000 ms, default 200 ms)1 way Relay output |
| Display | 2 x 20-character LCD with backlight, supports Chinese, English, and Italian |
| Signal Input | 3 way 4 to 20 mA input, accuracy 0.1%, acquisition signals such as temperature, pressure, and liquid levelConnects temperature transducer Pt100 for heat/energy measurement |
| Data Interface | Insulated RS485 serial interface, allows software upgrades via computer, supports MODBUS |
| Operating Temperature | -40°C to +160°C (-40°F to 320°F) |
| Weight | 6.0 kg (13.23 lb) |
| Dimensions | 40 x 25 x 16 cm (15.75 in x 9.84 in x 6.3 in) |
