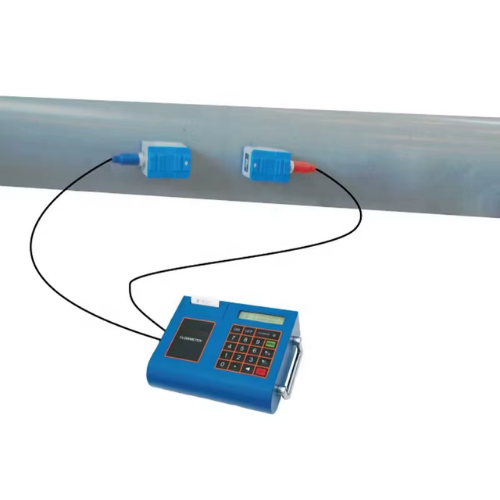

Name: Handheld Ultrasonic Digital Liquid Flow Meter - Acoustic Testing Pro - Acoustic Testing Pro
SKU: ACTPUFM-013

Features

Technical Specifications

Product Name	Ultrasonic Flowmeter
Accuracy	±1% of reading at rates>0.66 ft/s
Repeatability	0.2%
Principle	Transmit time
Velocity	Up to 105 ft/s
Pipe Size	DN0.59 in to DN236 in
Display	LCD with backlight, shows accumulated flow/heat, instantaneous flow/heat, velocity, time, etc.
Signal Output	1 way 4-20mA output; 1 way OCT pulse output; 1 way relay output
Signal Input	3 way 4-20mA input for heat measurement using PT100 platinum resistor
Other Functions	Auto record forward, reverse, net accumulated flow/heat; auto record power-on/off and last 30 flow readings; data readable via Modbus
Pipe Material	Carbon steel, stainless steel, cast iron, cement pipe, copper, PVC, aluminum, FRP, liner allowed
Straight Pipe Section	Upstream 10D, Downstream 5D, From pump 30D (D = outer diameter)
