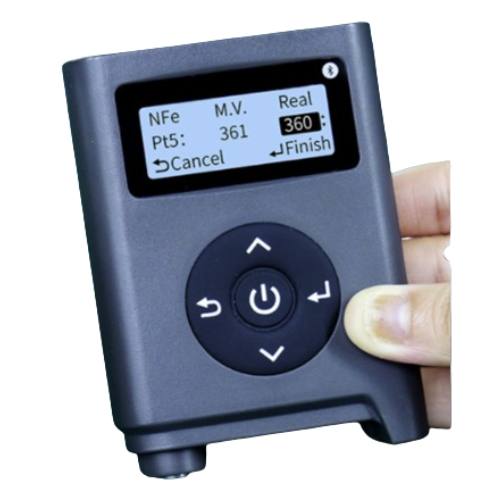

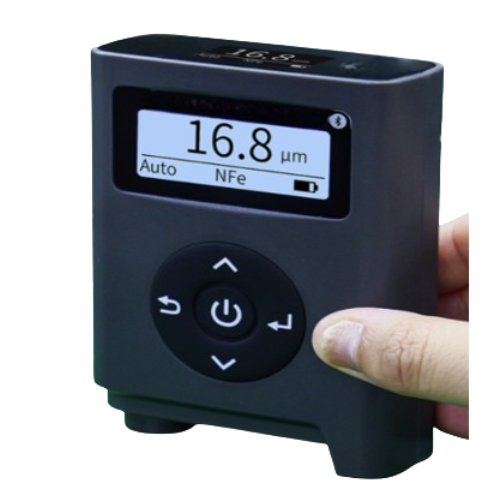

Digital Powder and Anodized Layer Coating Thickness Gauge – Acoustic Testing Pro

Overview

Acoustic Testing Pro Digital Powder & Anodized Layer Coating Thickness Gauge is a non-destructive measuring device designed for accurately determining coating thickness on various metal substrates. This product can measure non-magnetic coatings such as paint, lacquer, enamel, chrome, and zinc on ferromagnetic metals like steel, as well as non-conductive coatings such as paint, anodizing, and ceramics on non-magnetic metals including copper, aluminum, die-cast zinc, and brass. It automatically identifies the type of substrate and switches measurement modes accordingly, making it ideal for manufacturing, metal processing, chemical industries, and quality inspection. This device features self-weighted measurement for stable positioning, dual display screens for easy reading, and multi-point calibration for complex scenarios. Its dual-use probe supports both Fe and NFe measurements, with automatic substrate recognition. It offers high accuracy up to 2%H+1μm and provides a continuous measurement mode with real-time max/min display for larger surfaces. Additionally, this product has built-in memory capable of storing 9 sets of data for convenient tracking and analysis.

Features

• This device provides non-destructive measurement of coatings on both ferromagnetic and non-ferromagnetic metals.
• It automatically recognizes the substrate type and switches measurement modes for accurate results.
• Dual display screens allow for easy and clear reading of measurements.
• Self-weighted measurement ensures stable positioning and reduces human error.
• Multi-point calibration supports precise measurements in complex scenarios.
• The dual-use probe (Fe/NFe) allows versatile measurement for different coating types.
• High accuracy up to 2%H+1μm, certified by metrology standards.
• Continuous measurement mode with real-time max/min display is ideal for large surfaces.
• Built-in memory stores up to 9 sets of measurement data for convenient record-keeping.
• Compact and lightweight design, powered by 2 AA batteries for portable use.
