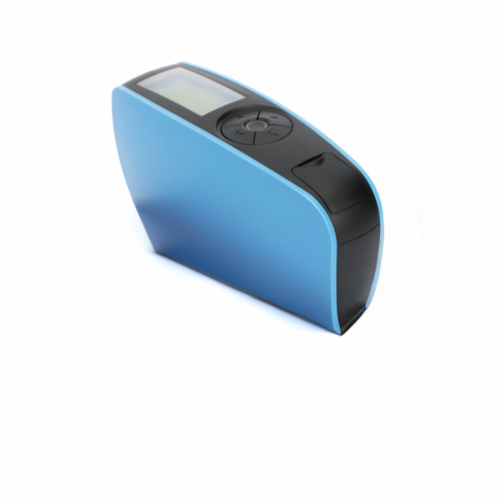

Digital Gloss Meter for Surface Measurement – Acoustic Testing Pro
Acoustic Testing Pro Economic Digital Gloss Meter for Surface Measurement is designed for accurate and reliable gloss testing across a wide range of materials.
Overview
Acoustic Testing Pro Economic Digital Gloss Meter for Surface Measurement is designed for accurate and reliable gloss testing across a wide range of materials. This device is developed in compliance with international standards such as ISO 2813, GB/T 9754, ASTM D 523, and ASTM D 2457, ensuring consistent and precise results. It features an elegant design that combines aesthetics and ergonomics, along with an auto-calibration function for ease of use.With a measuring range of 0–200GU and a measuring area of 9×15 mm, this product delivers quick readings in just 0.5 seconds. It meets the first-grade requirements of JJG696, offering repeatability of ±0.5GU for low gloss levels and ±0.5%GU for higher gloss levels. The device is lightweight and portable, making it suitable for various industries, including paint, ink, coatings, wood products, marble, ceramics, plastics, paper, and hardware.Equipped with a large, easy-to-read display, auto power-off, and durable build quality, this product is ideal for professional gloss measurement needs in both industrial and laboratory settings.
Features
- Accurate Gloss Measurement
- 60° Measuring Angle
- Auto-Calibration Function
- Quick Measurement
- Large Storage Capacity
- Portable and Lightweight
- Multi-Industry Applications
- Ergonomic Design
- Auto Power-Off
- Standard Compliance
- User-Friendly Display
Technical Specifications
| Measuring Angle | 60° |
| Measuring Area | 60°: 0.35 in × 0.59 in (9 mm × 15 mm) |
| Measuring Range | 60°: 0 GU to 200GU |
| Division Value | 1GU |
| Measuring Modes | Basic mode |
| Measuring Time | 0.5 s |
| Repeatability | 0 GU to 100GU: ±0.5GU 100 GU to 200GU: ±0.5%GU |
| Accuracy | Conforms with JJG696 second grade requirements |
| Auto Power-off Time | 30 s |
| Long-time Calibration | No |
| Storage | No |
| Display | 2.3-inch white and black screen |
| Power Supply | 1 pc dry-cell battery (up to 10,000 measurements) or USB charge |
| Interface | No |
| PC Software | No |
| Operation Temperature Range | 32 °F to 104 °F (0 °C to 40 °C) |
| Storage Temperature Range | -4 °F to 122 °F (-20 °C to 50 °C) |
| Humidity Range | < 85% RH, without condensation |
| Standard Accessories | User manual, calibration plate |
| Optional Accessories | Miniature printer |
| Size | 6.30 in × 2.05 in × 3.31 in (160 mm × 52 mm × 84 mm) |
| Weight | About 10.58 oz (300 g) |
