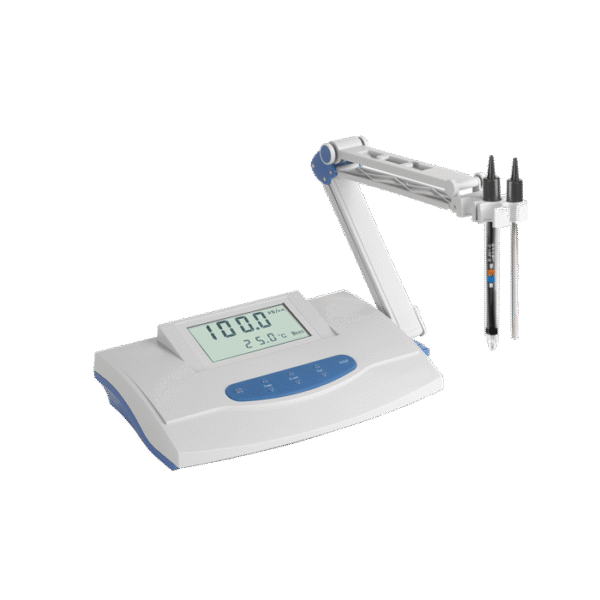

Conductivity Meter with Temperature (High purity water)
GAO Tek Conductivity Meter with Temperature and Conductance sensor is designed for technicians to test purity of water effectively.
Overview
GAO Tek’s budget-friendly and high-performance conductivity meter is designed to have the function of
automatic and manual temperature compensation. This instrument allows users to test high purity
water if matched with the titanium alloy sensor of 0.01cm -1 and sealed measuring reservoir. The reliable
device integrates the DJS-1C conductance sensor (platinum black) and the T-818- B-6 temperature sensor which enhance its testing ability. GAO Tek’s conductivity meter also highlights a large LCD segmented display which accurately shows the testing information.
Key Features
- LCD segmented display
- Automatic and manual temperature compensation function
- Embedded DJS-1C conductance sensor (platinum black) and T-818- B-6 temperature sensor
- Ability to test high purity water
Technical Specifications
|
Electrode constant (K) (cm-1) |
0.01 |
0.1 |
1 |
10 |
|
|
Measuring range (μS/cm) |
0.0～2.0 |
0.2～20.0 |
2～1×104 |
1×104～1×105 |
|
|
Conductivity |
0.00μS/cm～100mS/cm |
||||
|
Stability |
（±0.33%FS±1 digital）/3h |
||||
|
Temperature compensation range |
0~104 F (0.0～40.0)）℃ |
||||
|
Power supply |
AC(220±22)V；(50±l)Hz |
||||
|
Dimension |
11.81x 7.87x 2.83 in(300×200×72mm) |
||||
|
Weight |
3.306 lbs(1.5kg) |
||||
|
Temperature: |
±0.3℃±1 bit |
||||
