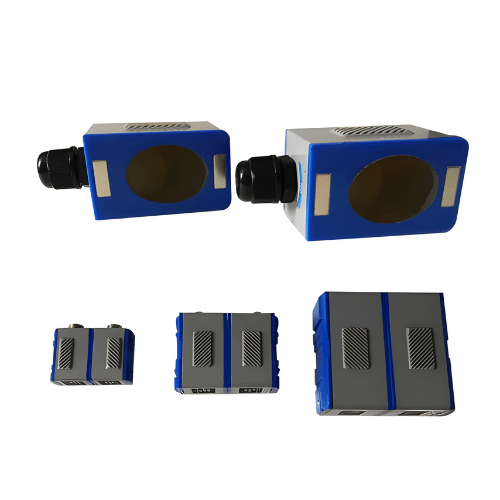

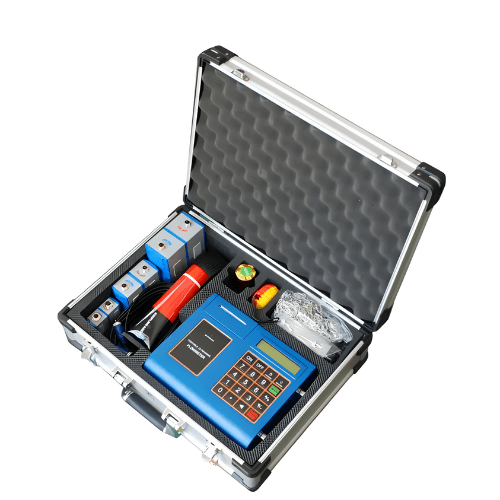

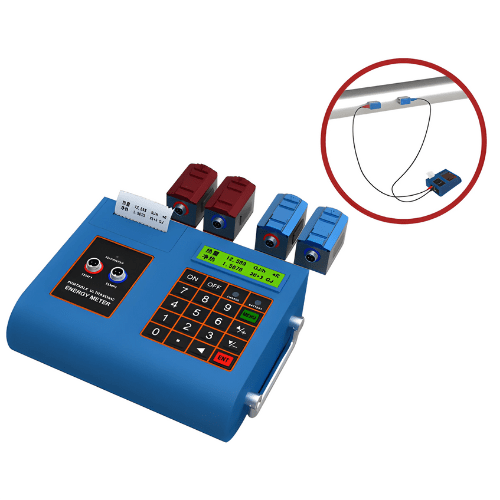

Acoustic Testing Pro Ultrasonic Liquid Flow Meter
This Ultrasonic Liquid Flow Meter has Installation Upstream 10D, downstream 5D,30D away from the pump outlet (D for diameter), Temperature 22 °F to 360 °F.
Technical Specifications
| Principle | Ultrasonic transit-time principle, Four-byte IEEE754 floating arithmetic |
| Accuracy | Flow: Better than ±1% |
| Display | LCD display with Chinese, English, Italian language |
| Output | One OCT pule output (pules width 6 to1000ms, Default 200ms) |
| Data Interface | Isolation of 232 communication interface, Can upgrade flow meter through PC |
| Diameter | 15 to 6000mm |
| Installation | Upstream 10D, downstream 5D, 30D away from the pump outlet (D for diameter) |
| Temperature | Temperature: 22 °F to 360 °F (-30 °C to 160 ℃) |
| Turbidity | 10000ppm and with little bubbles |
| Velocity | 0 to ±10m/s |
| Humidity | Transmitter: 85%RH; transmitter protection grade: IP67 |
