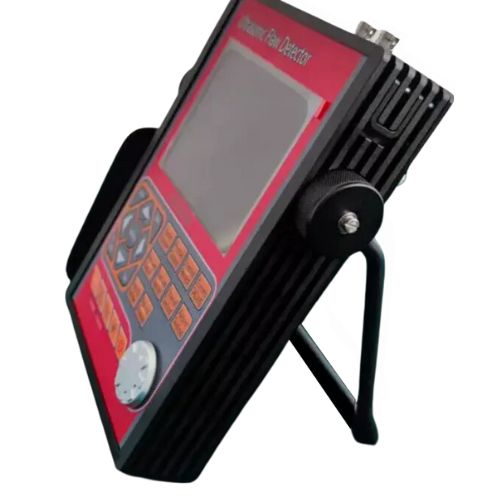

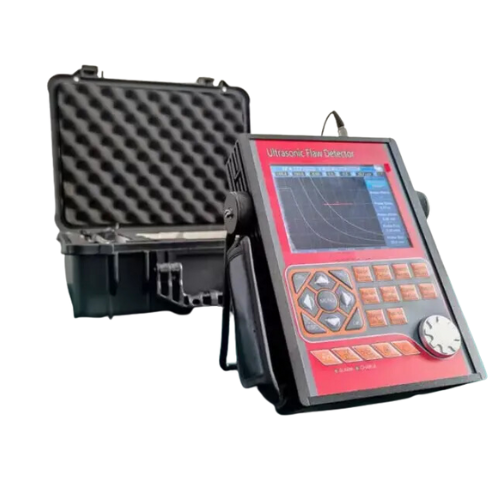

Acoustic Testing Pro Ultrasonic Crack Detector
This Ultrasonic Crack Detector has dynamic range of more than equal 34 dB, data storage of 300 Scan images and 4800 mAh Li-Ion battery.
Features
- AutCKDted calibration of transducer Zero Offset and/or Velocity
- AutCKDted gain Peak Hold and Peak Memory
- AutCKDted display precise flaw location
- Big memory of 300 A graph
- AutCKDted echo degree
- AutCKDted make video of test process and play
- Powerful pc software and reports can be exported to excel
Technical Specification
| Reject | 0 % to 80 % of screen height, step: 1% |
| Vertical linear error | Vertical linear error is not more than 3% |
| Horizontal linear error | Not more than 0.2% in the scanning range |
| Sensitivity Leavings | ≥62 dB |
| Dynamic range | ≥34 dB |
| Alarm | Three modes, i.e., forbidden wave, loss wave and auto |
| A-Scan display area | Full screen or local A-Scan display freezing and de-freezing A-Scan filling |
| Data save | 300 A-Scan images (including setting of instrument) |
| Standard communication interface with PC | RS 232/USB |
| Measuring unit | mm/inch |
| Battery | Li battery 7.4 V 4800 mAh |
| Power adaptor | Input 100 V to 40 V/5 Hz to 60 Hz Output 9 V DC/1.5 A |
| Working temperature | 50 °F to 122 °F (-10 ℃ to 50 ℃) |
| Working humidity | 20% to 90% |

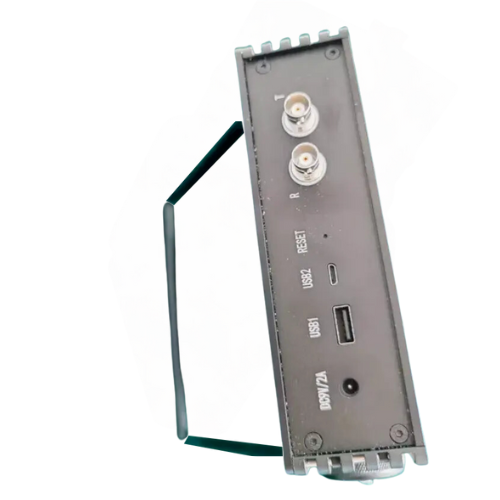

| Port type | BNC / LEMO |
| Overall dimension | 9.44 in x 5.90 in x 1.9 in (240 mm × 150 mm × 50 mm) |
| Weight | 3.75 lb (1.7 kg) |
