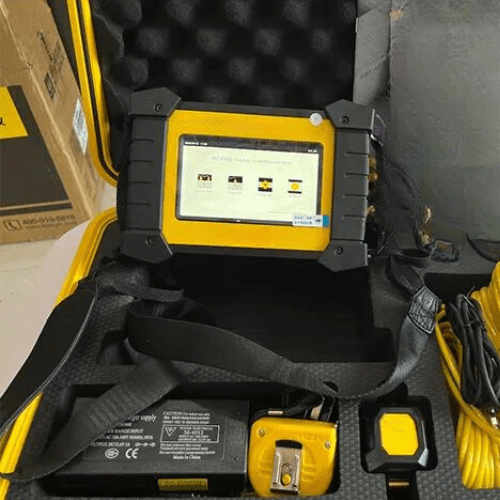

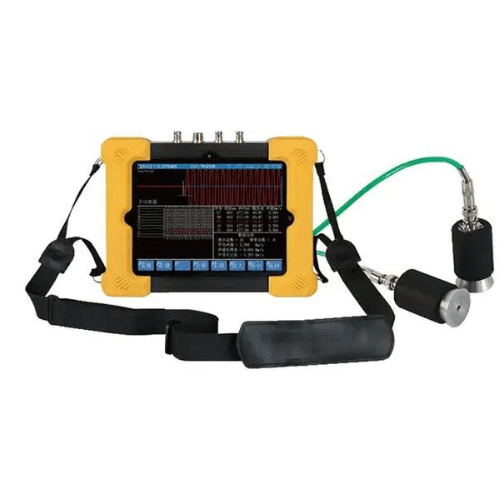

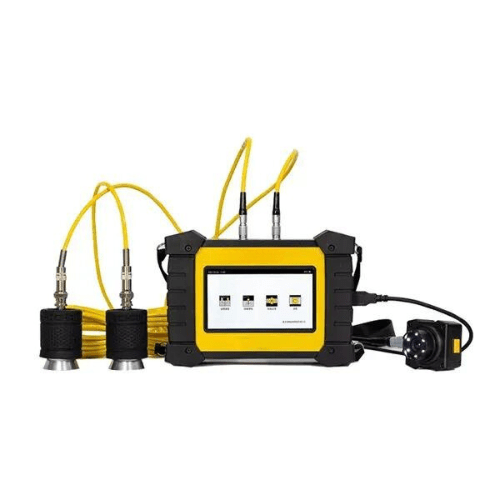

Acoustic Testing Pro Ultrasonic Crack Detector
Acoustic Testing Pro ultrasonic crack detector adopts ultrasonic principle and microscopic camera technology, which is suitable for detecting the depth and width of cracks in concrete and non-metallic surfaces, etc.
Overview
Acoustic Testing Pro ultrasonic crack detector adopts ultrasonic principle and microscopic camera technology, which is suitable for detecting the depth and width of cracks in concrete and non-metallic surfaces, etc.
Features
- Automatic reading of test data
- Width and length measurement in one function
- Direct display of test results
- Full color HD touch large screen
- More than 8 hours of continuous work
- Arbitrary override during testing
- Dedicated data analysis software
Technical Specifications
| Number of channels | Dual channel unit |
| Display mode | 8 in-color LCD (1024 pixels x 768 pixels) |
| Storage capacity | 8 GB |
| Width range | 3.94 in to 0.4 in (0.01 mm to 10 mm) |
| Depth range | 0.2 in to 19.7 in (5 mm to 500 mm) |
| Sampling period | 0.03 µs to 2000 µs |
| Sampling length | 512 points to 2048 points multi-life optional |
| Emission pulse width | 0.1 µs to 100 µs |
| Emission voltage width | 125 V, 250 V, 500 V, 1000 V optional |
| Trigger circuit | Internal trigger method |
| Diversion mode | Special U disk |
| Charging power supply | AC 100 V to 240 V, 50 Hz to 60 Hz, output 12.6 V DC, 3 A |
| Host volume | 10.19 in x 7.28 in x 2.205 in(257 mm x 185 mm x 56 mm) |
| Operating temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Host weight | 5.07 lb (2.3 kg) |
