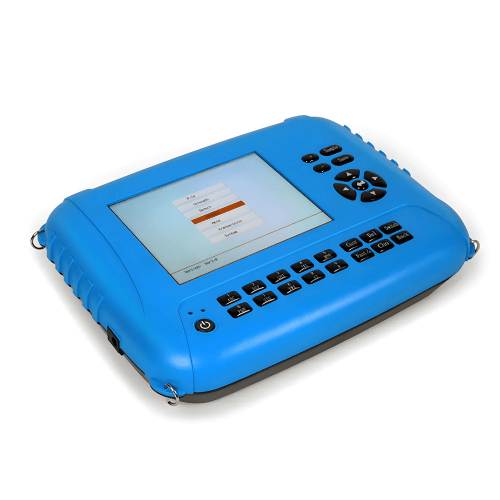

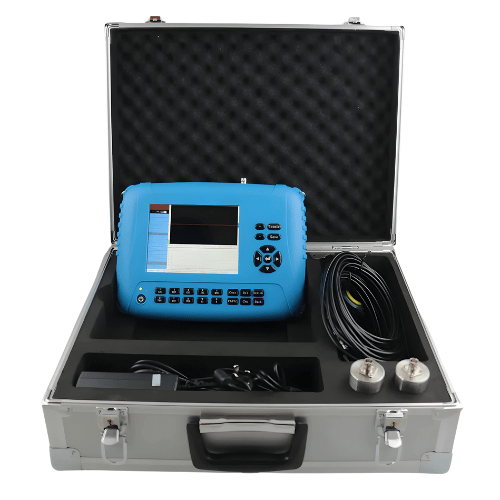

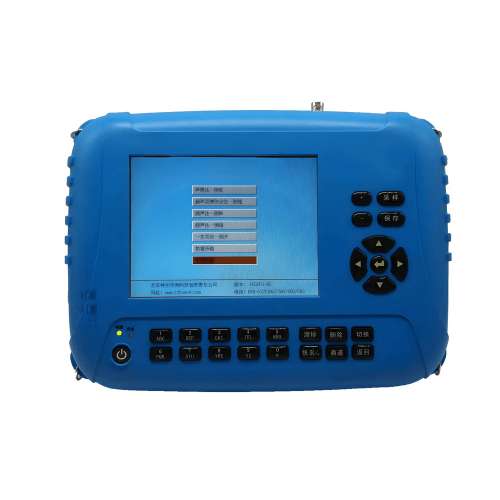

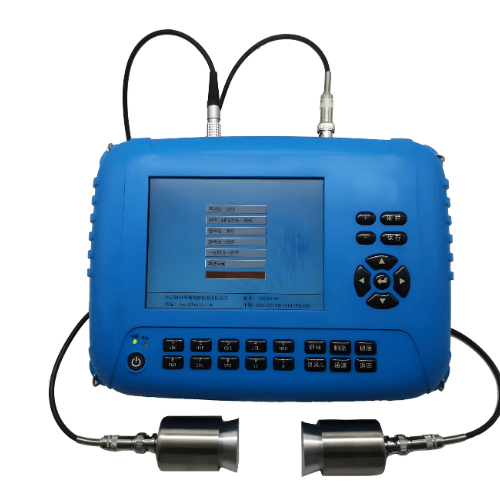

Acoustic Testing Pro Ultrasonic Crack Detection Equipment
Acoustic Testing Pro Ultrasonic Crack Detection Equipment is mainly used for crack width and crack depth measurement of bridges.
Overview
Acoustic Testing Pro Ultrasonic Crack Detection Equipment is mainly used for crack width and crack depth measurement of bridges, tunnels, buildings, roads and so on. Powerful software in windows system convenient to data process and analysis: Real USB transmission, export data to word and excel, save and print data.
Technical Specifications
| Hardware Platform | Embedded ARM 9 Hardware platform, WinCe5.0 operating system, true color, TFT Touch Screen |
| Crack Width Test Range | Standard Probe: 0.00 in to 0.26 in (0.01 mm to 6.5 mm) |
| Crack Depth Test Range | 0.39 in x 19.69 in (10 mm x 500 mm) |
| Image Storage Format | BMP or JPEG |
| Power Supply | Rechargeable Lithium Battery |
| Working Time | ≥28 Hours |
| Working Temperature | 14 ºF to 122 ºF (-10 ºC to 50 ºC) |
| Working Humidity | ≤90% RH |
| Net Weight | 3.96 lb (1.8 kg) |
