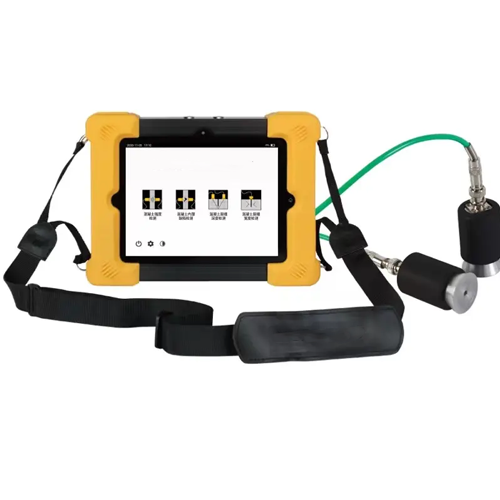

Acoustic Testing Pro Ultrasonic Concrete Crack Detector
Acoustic Testing Pro ultrasonic concrete crack detector is used for testing concrete strength by ultrasonic rebound comprehensive method and detect concrete crack depth.
Overview

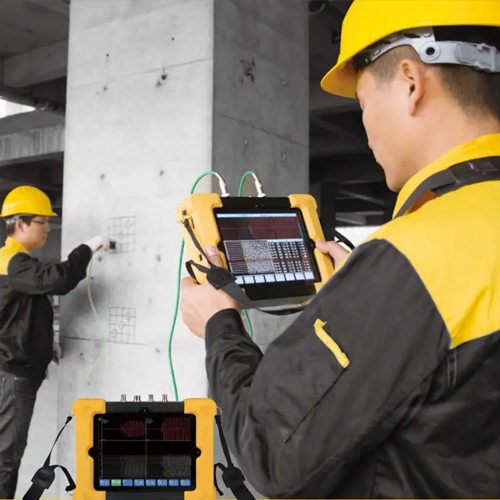

Acoustic Testing Pro ultrasonic concrete crack detector is used for testing concrete strength by ultrasonic rebound comprehensive method and detect concrete crack depth. It has a function to take automatic readings and photos of crack width of concrete structure.
Features
- Full touch screen operation, simple and convenient, stable and reliable
- Large-size high-brightness LCD display (8 in, 1024 x 768)
- Brand new operation interface, easy to learn and use
- Low power consumption design, continuous working time is more than 8 hours
- The ultrasonic rebound comprehensive method integrates 4 major functions strength measurement, lack measurement, depth measurement, and width measurement
- Automatic interpretation of the first wave sound time and amplitude, real – time display, and test results at a glance
- The sound timeline can be adjusted manually to avoid mis judgment, and the operation is simple and practical
- During the test, the waveforms of the stored measurement points can be played back, overwritten, and deleted at will
- U disk dump data, support software upgrade through U disk
Technical Specification
| Main Control Unit | A8 professional processor |
| Display Mode | 8 in color LCD screen (1024 x 768) |
| Trigger Mode | Auto Trigger |
| Sampling Interval | 0.25 µs to 2000 µs multi-level optional |
| Sampling length | 512 points to 2048 points multi – level optional |
| Emission pulse width | 0.1 µs to 100 µs |
| Emission voltage | 12 V ,250 V ,500 V ,1000 V multi – level optional |
| Storage Capacity | 16 G |
| Transfer Method | Dedicated U disk |
| Changing Power Supply | AC 100 to 240 V, 50 / 60 Hz, output 12.6 V DC, 3.0 A |
| Host Volume | 10.12 in x 7.28 in x 2.20 in (257 mm x 185 mm x 56 mm) |
| Host Weight | 5.29 Ib (2.4 kg) |
| Working Temperature | -4 °F to 140 °F (-20 °C to + 60 °C) |
| Depth Measurement Range | 0.20 in to 19.69 in (5 mm to 500 mm) |
| Width Measurement Range | 0.00 in to 0.39 in (0.01 mm to 10 mm) |
| Receive Sensitivity | <10 µV |
| Acoustic Time Measurement Range | 0 µs to 4000000 µs |
| Amplitude reading range | 0 dB to 170 dB |
