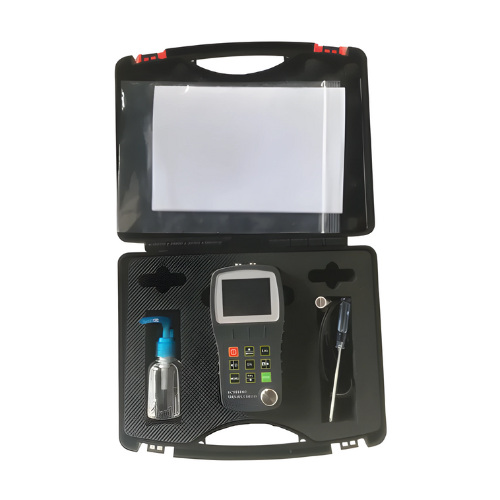

Acoustic Testing Pro Thickness Gauges Thickness Measuring Meter
Acoustic Testing Pro Thickness Gauges Thickness Measuring Meter, using pulse-echo and echo-echo detection technology, offers enhanced accuracy and yield.
Overview
Acoustic Testing Pro Thickness Gauges Thickness Measuring Meter, using pulse-echo and echo-echo detection technology, offers enhanced accuracy and yield. Equipped with an advanced digital signal processing chip and a high-resolution LCD screen, they provide an exceptional user experience. These gauges are ideal for measuring thickness of various materials like metals, plastics, ceramics, glass, and fiberglass.
Features
- Zero-point and two-point calibration
- Displays real-time max and min values
- USB interface for DC and TF card storage
- Uses a 2.4-inch true colour LCD screen
Technical Specifications
| Working Principle | Ultrasound(pulse-echo) |
| Scope Of Test | 0.029 in to 11.81 in (0.75 mm to 300 mm) |
| Resolution | 0.0039 in (0.1 mm) |
| Unit | Inch or mm |
| Scan Mode | 25 times second |
| Frequency Bandwidth | 0.5 MHz to 15 MHz |
| Optional Probe | High temperature |
| 2.4-Inch HD Color Screen | High contrast 320 x 240 true color LCD screen |
| Sound Path Correction | Automatic |
| Probe Connection Status Indication | Have |
| Storage | TF card machine storge, can be exported to save |
| Communication | USB interface communicates with host computer |
| Dimensions | 5.7087 in x 2.9528 in x 1.0630 in (145 mm x 75 mm x 27 mm) |
