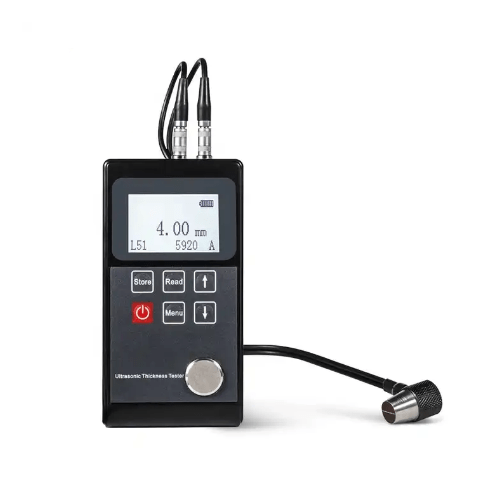

Acoustic Testing Pro Thickness Gauge Meter
Acoustic Testing Pro thickness gauge meter adapted to all kinds of materials, which are good conductor of ultrasonic wave such as metals (steel, cast iron, aluminum, copper and etc), plastic, ceramics, composites, epoxies, glass and etc.
Overview
Acoustic Testing Pro thickness gauge meter adapted to all kinds of materials, which are good conductor of ultrasonic wave such as metals (steel, cast iron, aluminum, copper and etc), plastic, ceramics, composites, epoxies, glass and etc.
Features
- Integrated with calibration block
- Two display unit’s mm and in
- With coupling indication
- Measuring sound velocity according to the known thickness of the object
Technical Specifications
| Accuracy | ± (1% H to 0.1% H) refers and ± (0.5% H + 0.01% H) H refers to the thickness of testing piece to the thickness of testing piece |
| Velocity range(m/s) | 5920 m/s and 1000 m/s to 9999 m/s |
| Storage | 500 Groups |
| Shell | plastic |
| Dampness | 20% to 90% |
| power supply | AAA alkaline batteries |
| Operating Temperature | 14 °F to 140 °F (-10 °C to 60 °C) |
| resolution mm | 0.03 in to 0.03 (0.1 mm to 0.01 mm) |
| Thickness measuring range mm | 0.02 in to 11.81 in (0.7 mm to 300 mm) depend on the probe and materials |
| dimension mm | 5.11 in × 2.75 in × 0.98 in (130 mm × 70 mm × 25 mm) |
| weight | 0.44 Ib (200 g) |
