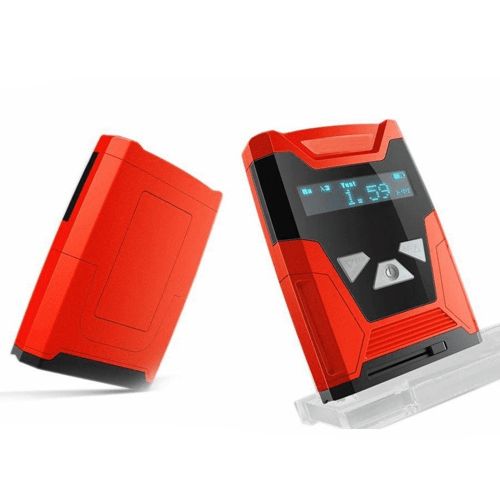

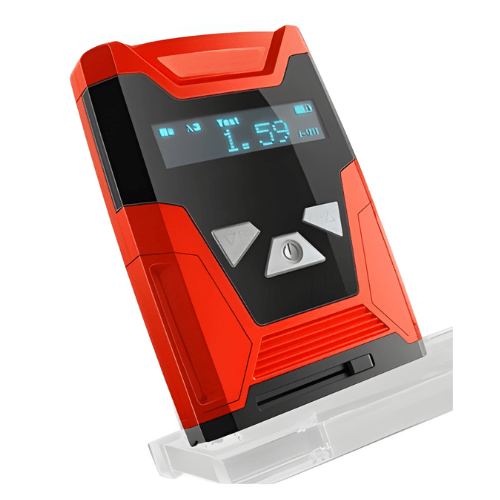

Acoustic Testing Pro Surface Roughness Tester With 4 Parameters
This Surface roughness tester with 4 parameters has a working temperature of 32 ºF to 120 ºF and a measuring range of Ra:0.05 to 10.0μm Rz:0.1 to 50μm.
Features
- ABS shell for strength, anti-EMI.
- High-speed DSP processor for fast measurement.
- OLED dot matrix indicator for display.
- ISO/DIN/CE/JIS/FCC standards compliance.
- Power: 3.7V Li-ion rechargeable battery.
Technical Specifications
| Roughness Parameters | Ra, Rz, Rq, Rt |
| Measuring Range | Ra 0.05 to 10.0 μm Rz 0.1 to 50 μm |
| Resolution | 0.01μm |
| Sample Length (lr) | 0.25 mm,0.8 mm, 2.5 mm / ± 20 μm, ± 40 μm, ± 80 μm |
| Evaluation Length(ln) | 1.25 mm, 4 mm, 5 mm |
| Arc Radius & Angle of Sensor | 10.0 ± 2.5 μm & Angle 90° |
| Stylus Force | ≤ 0.5 N |
| Operation Environment | 32 ºF to 120 ºF (0 ºC to 40 ºC) |
| Dimension (mm) | 4.1 in x 2.9 in x 0.9 in (105 mm × 75 mm × 24 mm) |
| Weight | 0.4 lb (180 g) |
