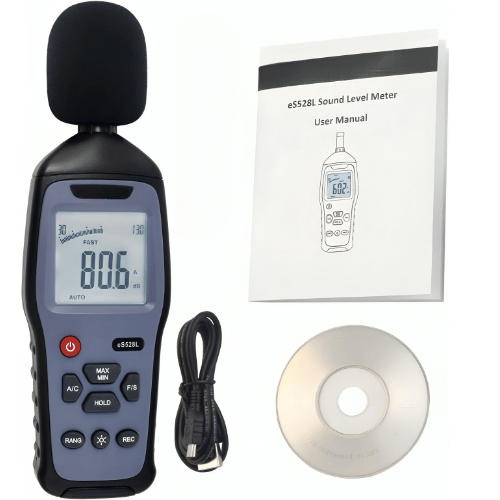

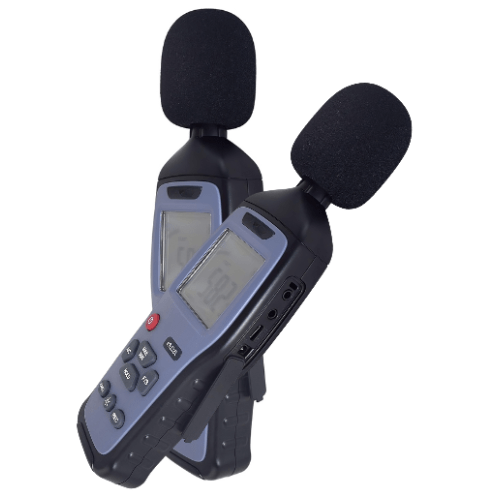

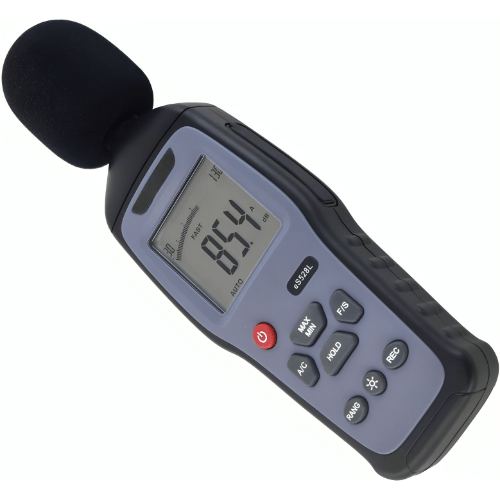

Acoustic Testing Pro Sound Level Meter With Noise Detector Data Logger
Acoustic Testing Pro Sound Level Meter with Noise Detector Data Logger in dB from 30dB to 130 dB.
Overview
Acoustic Testing Pro Sound Level Meter with Noise Detector Data Logger in dB from 30dB to 130 dB. User selectable features include Frequency weighting (A & C), Response Time (Fast & Slow), Data Hold and MAX/MIN recording. Comply with norm of IEC 651 type 2, ANSI S 1.4 TYPE 2. Each meter is fully tested and calibrated in the factory before delivery. With proper use, it will provide years of reliable service.
Features
- Digital LCD with Analog Bar-graph and backlight
- A/C Frequency weighting
- Fast/Slow Response time
- Over-range and Under-range indication
- MAX/MIN
- Data Hold
- Auto Power Off
- DC/AC Analog signal output
- External 9 V DC power supply
- Data logging and USB interface
Technical Specifications
| Measurement range | 30 dB to 130 dB |
| Microphone | ½ in polarized condenser microphone |
| Frequency range | 31.5 Hz to 8000 Hz |
| Accuracy | ±1.5 dB |
| Resolution | 0.1 dB |
| Data update | 500 ms |
| Response time | FAST 125 ms, SLOW 1 s |
| Standard calibrator | 1 K Hz sine wave at 94 OR’s 114dB |
| Display | 3 to ½ digital LCD with analog bar-graph |
| Outputs | AC/DC signal output from earphone jack AC=1 V rms, DC=10 mV/dB |
| Output port | Micro USB |
| Power | One 9 V battery or DC 9 V |
| Data logger memory | 32000 data |
| Weight | 7.05 oz (200 g) |
| Dimension | 215 in x 2.28 in x 1.29 in (215 mm x 58 mm x 33 mm) |
| Storage condition | – 4 °F to 140 °F (-20 °C to 60 °C),10% to 90% RH, Non-condensing |
| Operating condition | 0 °C to 50 °C (32 °F to 122 °F), 10 to 90% RH, Non-condensing |
