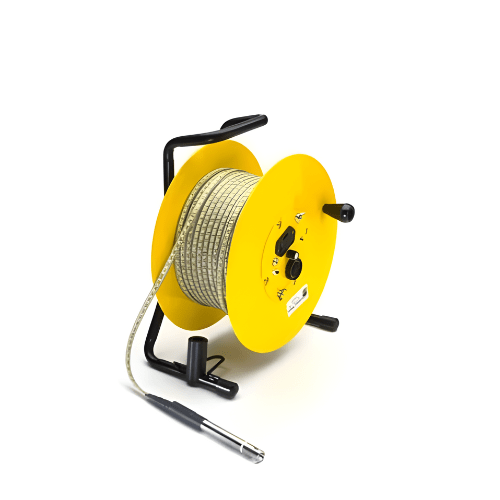

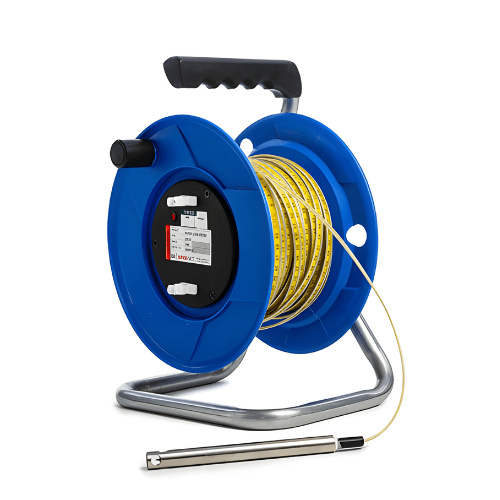

Acoustic Testing Pro Sound Level Meter Used For Well Depth
Acoustic Testing Pro sound level meter used for well depth is for accurately measuring the depth of water in wells, boreholes, standpipes and tanks, read accurately to 1/100 ft.
Overview
Acoustic Testing Pro sound level meter used for well depth is for accurately measuring the depth of water in wells, boreholes, standpipes and tanks, read accurately to 1/100 ft, it is supplied on a sturdy winding reel complete with a brake and carrying handle it include a shrouded stainless steel probe allows accurate level determinations under cascading water conditions a buzzer with adjustable volume control sensitivity control as standard and an optional tape guide or datum acts as a reference point, it also prevents tape abrasion from the casing edge and the moisture resistant electronics and standard 9 V battery are housed in the front for quick and easy access
Features
- Precision measurement, simplicity and durability
- Resist corrosion, strength, non-stretch and allow accurate readings
- Making it ideal for accurate measuring the total well depth
- Zero displacement, water and dust proof
- Audible and visible alarms activated when the probe makes the contact with water
- Fast response, suitable for noisy or adverse conditions
Technical specification
| Power supply | 9 V lithium battery |
| Level range | 0 m to 500 m |
| Resolution | 0.5 mm |
| Response time | ≤1 ms |
| Minimum indication | 1 mm |
| Signal | LCD, buzzer and electricity meter |
| Reels material | ABS and Metallica |
| Probe diameter | 0.15 in (14 mm) |
| Standard lengths | 30, 50, 100, 150, 300, 400, 500 |
| Working temperature | -4 °F to 140 °F ( -20 ℃ to 60 ℃) |
| Weight | 7.71 lb (3.5 kg) |
