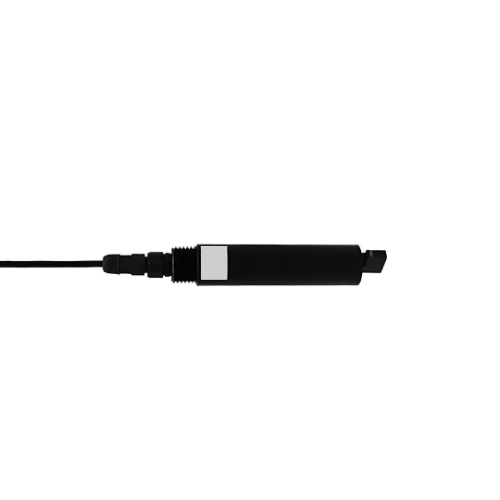

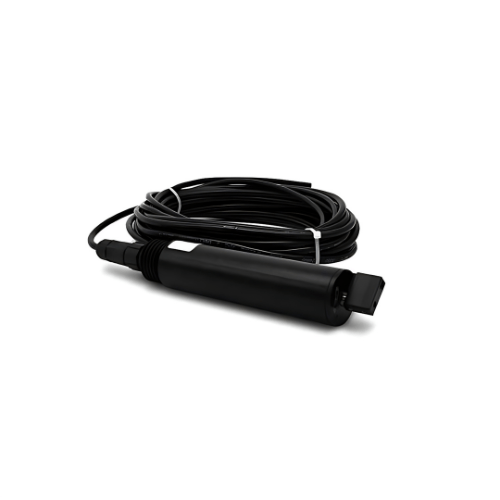

Acoustic Testing Pro Sensor Measurement Instrument
This sensor measurement instrument has 0 to 100 or 400 or 1000 NTU range, 0 ℃ to 50 ℃ temperature and DC 6 to 12 V power supply
Overview
• Comes with automatic temperature compensation
• Output standard Rs485 digital signal
• Touch screen
• Parameter setting is more convenient and fast, and the calibration function can provide a simple and fast calibration method
• It can be equipped with real-time data transmission of the Internet of Things cloud platform, allowing you to obtain timely and accurate data of monitoring water bodies
Technical Specifications
| Range | 0 to 100 or 400 or 1000 NTU Optional |
| Resolution | 0.01 to 0.1 NTU |
| Protection level | IP68 comes with cleaning brush |
| Temperature range | 0 ℃ to 50 ℃ |
| Mode of use | Input |
| Shell material | POM |
| Accuracy | 5 % FS |
| Measuring principle | 90° light scattering method |
| Depth | 10 meters underwater |
| Data output | Support RS-485, MODBUS protocol |
| power supply | DC 6 to 12 V, current <50 mA (when not cleaning) |
| Cable length | Standard 5m, can be customized |
| Storage temperature | (0 ℃ to 60 ℃) |
| Size | Φ 33 mm x 172 mm |
