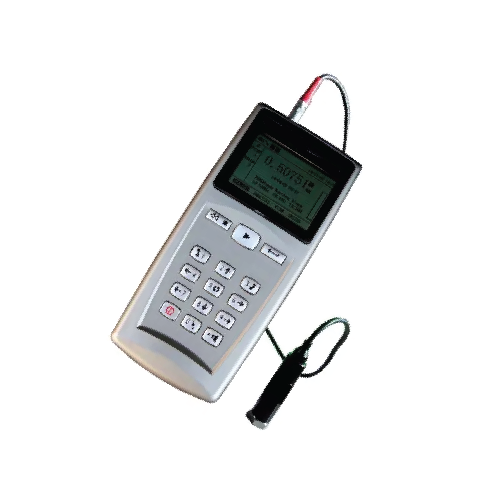

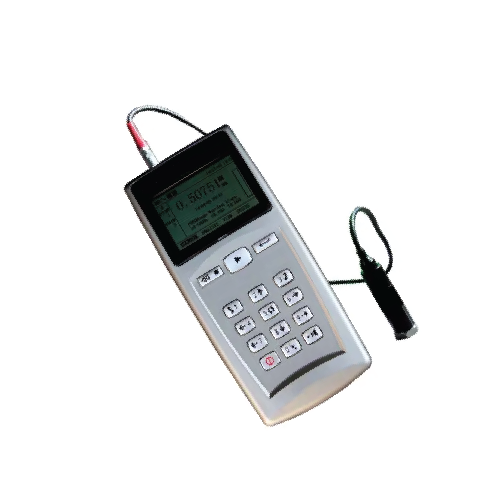

Acoustic Testing Pro Portable Vibration Tester Meter
This Portable Vibration Tester Meter has temperature range of 32 oF to 104 oF measuring range of 10 Hz to 200 Hz and lithium battery.
Features
- Two display modes: digital value mode and spectrum mode
- Large memory function: 100 x 100 measured results (100 testing points, 100 data can be stored in each testing points), 100 spectrograms (each testing point can store one spectrogram)
- Spectrogram can display in real time
- Histogram can be made according to the preset alarm line
Technical Specification
| Acceleration | 0.1 m2 /s to 392 m2 /s |
| Measuring range | |
| Velocity | 0.1 cm/s to 80 cm/s |
| Displacement | 0.1 mm to 1801 mm |
| Acceleration | 10 Hz to 200 Hz |
| Frequency Range | |
| Velocity | 10 Hz to 200 Hz |
| Displacement | 10 Hz to 200 Hz |
| Accuracy | ±5% |
| Temperature | 32 oF to 104 oF (0 oC to 40 oC) |
| Humidity | <=80% RH |
| Power | Li battery (continuous working 20 hours without backlight) |
| Dimension | 6.73 in x 3.09 in x 1.10 in (171 mm x 78.5 mm x 28 mm) |
| Weight | 0.50 lb (230 g) |
