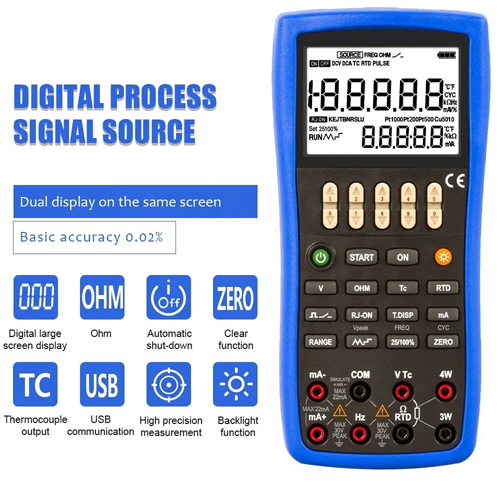

Acoustic Testing Pro Portable Temperature Calibrators Frequency Calibrator
This Portable Temperature Calibrators Frequency has Calibrator has adjustable calibration settings, a digital display, and an auto-power off function.
Overview
This Portable Temperature Calibrators Frequency has Calibrator has adjustable calibration settings, a digital display, and an auto-power off function.
Features
- Calibration of temperature-related parameters and frequency signals
- Accurate and precise temperature measurements and calibrations
- Compatibility with various temperature sensors, thermocouples, and RTDs
- Clear digital display for easy readings and operation
- Adjustable calibration settings for customization
- Compliance with industry standards for reliable calibration
- Durable construction with shock resistance for reliable performance in challenging environments
- Portable design for easy transportation and field use
- Compatibility with a wide range of devices and instruments for calibration purposes
- Wide Measurement Range: Supports a wide range of measurement parameters to cater to various applications
Technical Specification
| Display | Double display on the LCD screen |
| Auto Power-off | Yes |
| Charging function | Yes |
| Source DC millivolt Range | -10 mV to 1100 mV |
| Source DC millivolt Accuracy | 0.02% + 0.01% |
| Source DC voltage Range | -1 V to 11 V |
| Source DC voltage Accuracy | 0.02% + 0.01% |
| Source DC current Range | 0 mA to 22 mA |
| Source DC current Accuracy | 0.02% + 0.02% |
| Source Sink current Range | 0 mA to 22 mA |
| Source Resistance Range | 0 KΩ to 40 KΩ |
| Source Frequency Range | 1 Hz to 100 KHz |
| Source Switch Range | 1 Hz to 100 KHz |
| Source Switch Accuracy | ±2 words |
| Source Thermocouple Range | R, S, K, E, J, T, B, N, L, U |
| Source Thermocouple Accuracy | 39.2 °F (0.4 °C) |
| Source RTD Range | Pt 100, Pt 200, Pt 500, Pt 1000, Cu10, Cu 50 |
| Source Switch Resolution | 0.01 Hz, 1 Hz, 0.1 KHz, 2 KHz |
| Power supply | 4 V × 1.5 V AAA alkaline battery |
| Display | Double display on the LCD screen |
| EMC | EN 61326 to 1:2006 |
| Insulation | DC 500 V / 50 MΩ |

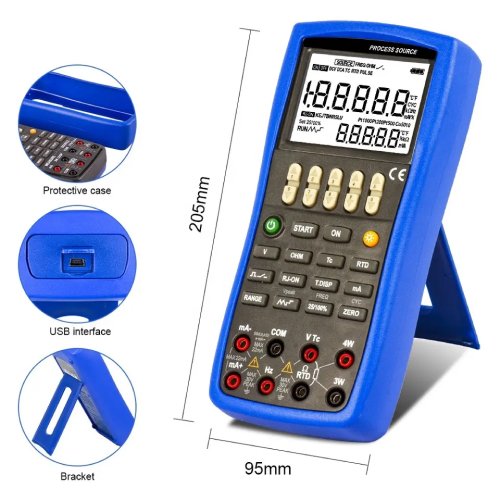

| Size | 8.07 in x 3.74 in x 1.65 in (205 mm x 95 mm x 42 mm) |
| Weight | 1.10 lb (500 g) |
