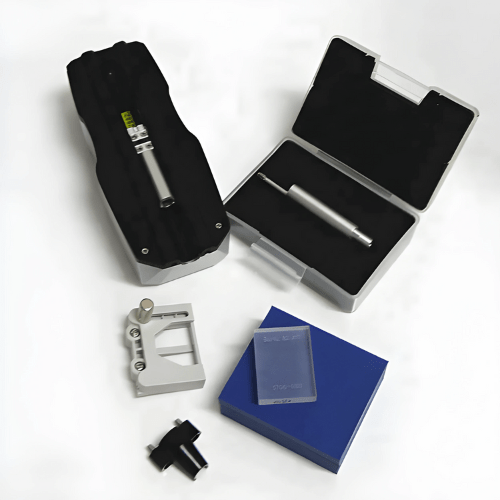

Acoustic Testing Pro Portable Surface Roughness Meter
This portable surface roughness meter has maximum driving trip of 0.7 in, indicating error not more than ± 10%, and variation of not more than 6%.
Technical Specifications
| The Maximum Driving Trips | 0.7 in (17.5 mm) |
| Indicating Error | Not more than ± 10% |
| Variation Of Indication | Not more than 6% |
| Parameter | Ra (0.005 μm to 16 μm), Rz (0.02 μm to 160 μm), Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx. |
| Filter | RC, PCRC, Gauss, ISO13565 |
| The Sampling Length L | 0.009 in x 0.03 in x 0.09 in x 0.31 in (0.25 mm, 0.8 mm, 2.5 mm, 8 mm) |
| Evaluation Length L | 1l to 5l |
| Internal Storage Capacity | 100 groups of original data |
| Outline Dimension | 5.6 in x 2.2 in x 1.6 in (143 mm x 55 mm x 42 mm) |
| Weight | 0.9 lbs (0.4 KG) |
