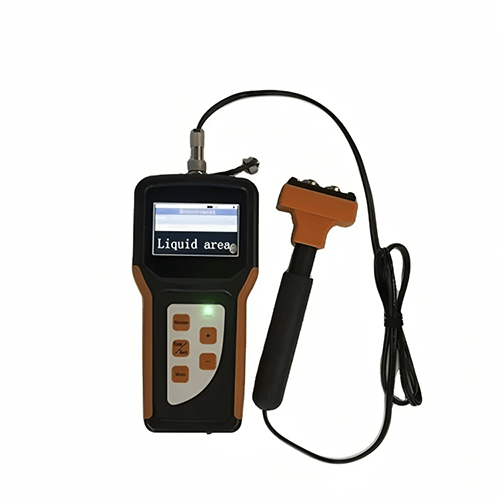

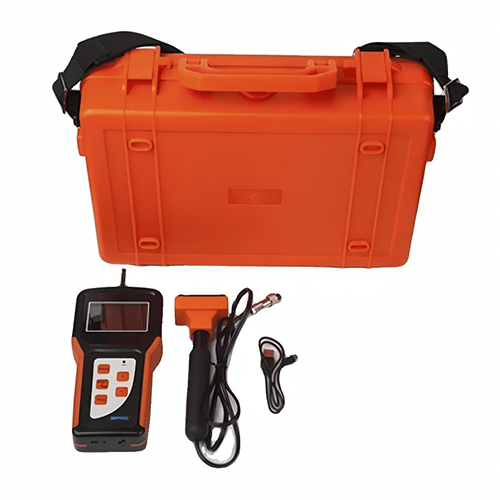

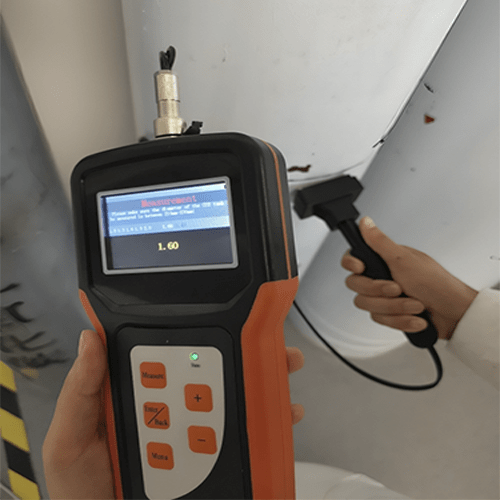

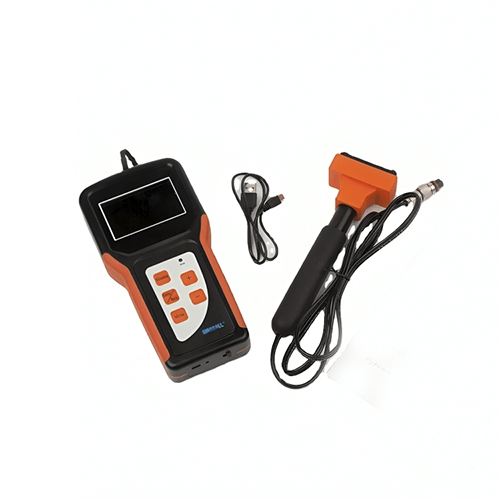

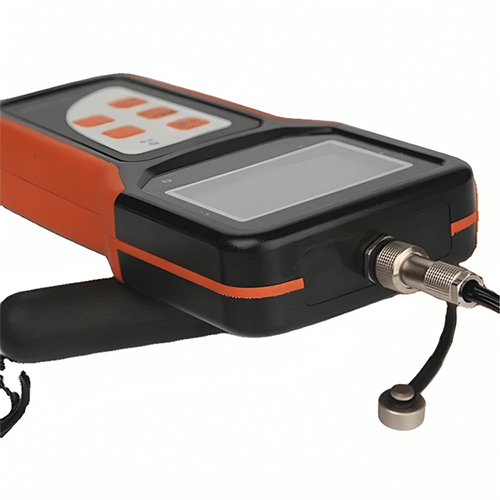

Acoustic Testing Pro Portable Sound Liquid Level Indicator
Acoustic Testing Pro portable sound liquid level indicator is designed to measure the presence or absence of liquid at a certain height position in a container.
Overview
Acoustic Testing Pro portable sound liquid level indicator is designed to measure the presence or absence of liquid at a certain height position in a container. The indicator can also be used to detect the presence or absence of liquid in pipelines.
Features
- NO-contact with medium, best choice for dangerous toxic or corrosive liquids
- Old display, suitable for outdoor use under strong light
- Accurate results under complicated situations with ultrasonic-waveform-display function
- Results visually displayed with comprehensive software
- Ease of operation using push button, no need of training
Technical Specifications
| Measurement Accuracy | <0.0787 in (<2 mm) |
| Measurable range of wall thickness | 0.118 in to 1.181 in (3 mm to 30 mm) |
| Measurable tank material | Steel, stainless steel, glass, unformed plastics |
| Measurable medium | Pure liquid, milky liquid, suspension liquid |
| Ambient temperature | -20 ℃ to 60 ℃ (-4 ℉ to +140 ℉) |
| Power supply | Two 18650 lithium batteries. One 2000 mAh lithium polymer battery (4.2 V — 3.5 V) |
| Current | 150 mA (on average) |
| Working hours | > 8 hours |
