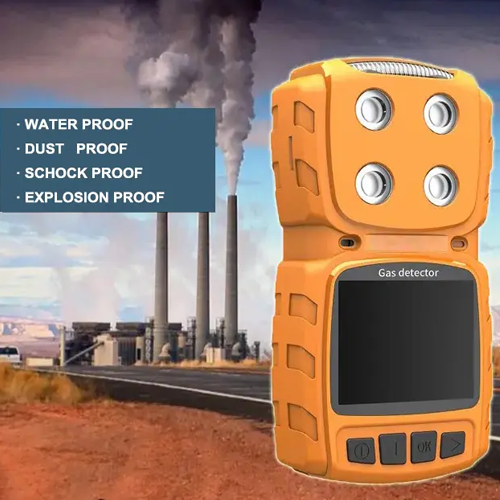

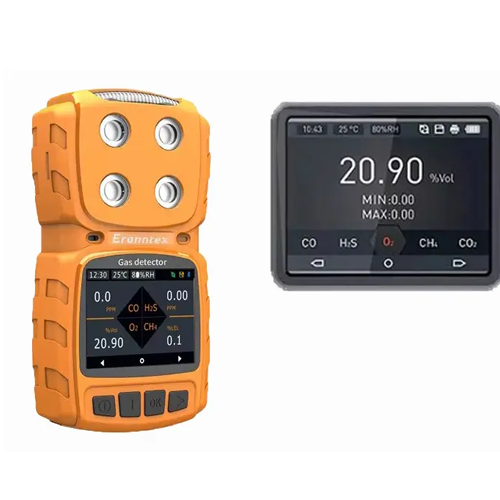

Acoustic Testing Pro Portable Multi Gas Detector
Acoustic Testing Pro Portable Multi Gas Detector it can be used in rapid detection of a variety of gas concentration and measurement of environmental temperature and humidity.
Overview
Acoustic Testing Pro Portable Multi Gas Detector it can be used in rapid detection of a variety of gas concentration and measurement of environmental temperature and humidity. If the measurement exceeds the limit value, the alarm will emit sound & light vibration as an alarm. It adopted advanced electronic circuit design, mature kernel algorithm processing, unique external appearance design, had achieved a number of patents about the software works, and external appearance.
Features
- Detects multiple gases, providing comprehensive safety monitoring
- Designed for easy carrying and on-the-go use
- Utilises advanced sensors for accurate gas measurement
- Intuitive interface for simple operation
- Provides continuous monitoring and instant gas concentration readings
- Stores historical data for analysis and reporting
- Allows users to set sensitivity levels for different applications
- Built to withstand tough environments and conditions
Technical Specifications
| Gases to be detected | Arbitrary combination of 1 to 4 types of gases such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on. Optional configuration: temperature and humidity measurements. |
| Application scenarios | All the cases which require the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on. |
| Detection range | 0 ppm to 1 ppm, 10 ppm, 100 ppm, 1000 ppm, 5000 ppm, 50000 ppm, 100000 ppm, 200 mg/L, 100% LEL, 20%, 50%, 100% Vol, can be selected; and other ranges can be customised. |
| Resolution | 0.01 ppm or 0.001 ppm (0 ppm to 10 ppm);0.01 ppm (0 ppm to 100 ppm),0.1 ppm (0 ppm to 1000 ppm),1 ppm (0 ppm to 10000 ppm or more),0.01 mg/l (0 ppm to 200 mg/l),0.1% LEL,0.01%,0.001% Vol |
| Detection principle | Electrochemical, catalytic combustion, infrared, thermal conductivity, PID photoionization, and so on, depending on the type of gas, range, field environment and user demand. |
| Allowable error | ≤±3% F.S (higher precision levels can be customised) |
| Power supply | 3.7 VDC, 3000 mA high-capacity rechargeable polymer battery |
| Display mode | 2.31-inch high-definition colour screen |
| Detection mode | Diffusion type measurement. The calibrated flow rate is 500 ml/minute. |
| Alarm mode | It is possible to set a sound & light alarm, vibration alarm, sound & light + vibration alarm, turning off the alarm. |
| Communication interface | USB (charging and communication), optional: RS485 communication interface |
| Data storage | Standard configuration is the data storage capacity for 100, 000 entries |
| Explosion-proof type | Intrinsically safe type |
| Explosion-proof mark | Exia II CT4 Ga |
| Standard accessories | Manual, qualification certificate, warranty card, USB charger (including the data cable), belt clip, colourful packaging box (optional high-grade aluminium instrument case) |
| Optional items | Temperature and humidity measurement function, external gas sampling pump, 1.2 m retractable sampling handle (1 metre to 10 metre hose, andthe standard length is 1 metre), 0.4 metre stainless steel sampling handle (with dust filter, not retractable) |
| Protection level | IP 65 |
| humidity | ≤10% RH to 95% RH |
| Temperature: | -40 °F to 158 °F (40 ℃ to + 70 ℃) |
| Exterior dimensions | 5.12 in × 2.68 in × 1.34 in (130 mm × 68 mm × 34 mm) |
| Weight | 7.05 lb (200 g) |
