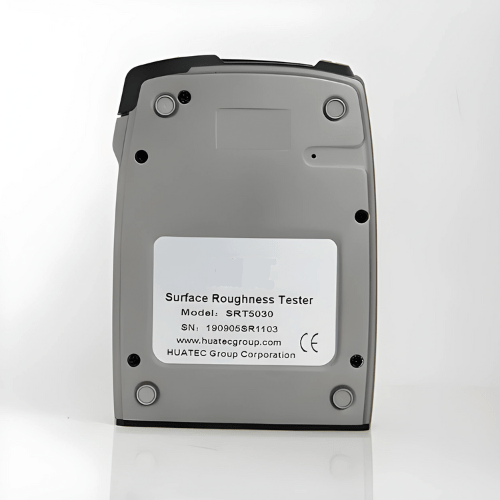

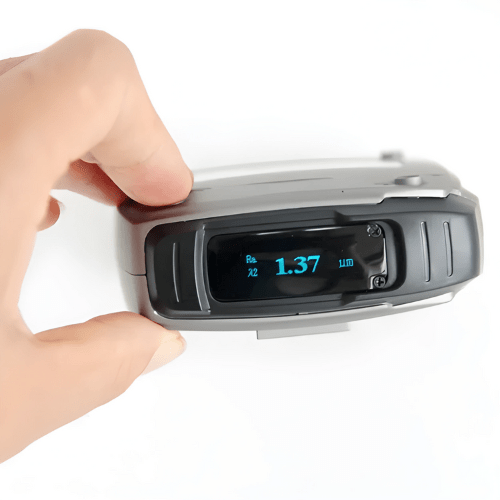

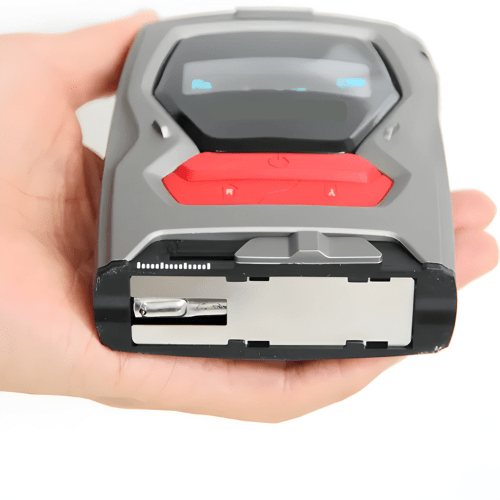

Acoustic Testing Pro Portable Digital Surface Roughness Tester
This portable digital surface roughness tester has force change rate of ≤ 800 N/m, battery of 3.7 V Lithium Rechargeable, and Led pressure of ≤ 0.5 N.
Features
- Dual OLED displays to suit your applications
- 2 keys to satisfy the different using habits
- Mobile app compatible to get the higher accuracy
- Convenient to be used in a small space
- ARM processor to offer higher speed
- Low power consumption and fast accurate measurement
Technical Specifications
| Optional Parameter | Ra, Rz, Rq, Rt |
| Measuring Range(μm) | Ra, Rq: 0.05 to 10.0; Rz, Rt: 0.1 to 50 |
| Sampling Length(mm) | 0.25 or 0.80 or 2.5 |
| Evaluation Length(mm) | 1.25 or 4.0 or 5.0 |
| Running Length(mm) | 6 |
| Force Change Rate | ≤ 800 N/m |
| Led Pressure | ≤ 0.5 N |
| Battery | 3.7 V Lithium Rechargeable battery |
| Dimensions in mm | 4.3 in x 3.2 in x 1.2 in (110 mm × 81 mm × 32 mm) |
| Weight | 0.33 lb (150 g) |
