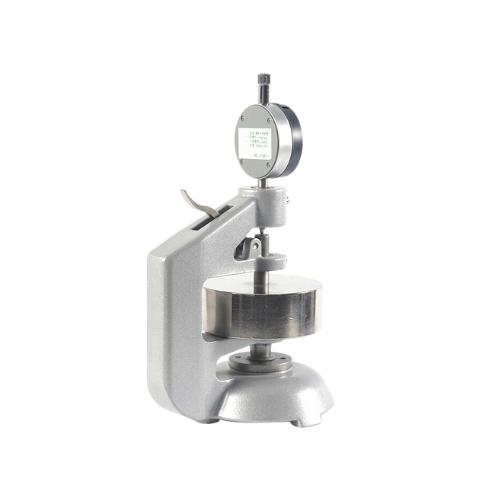

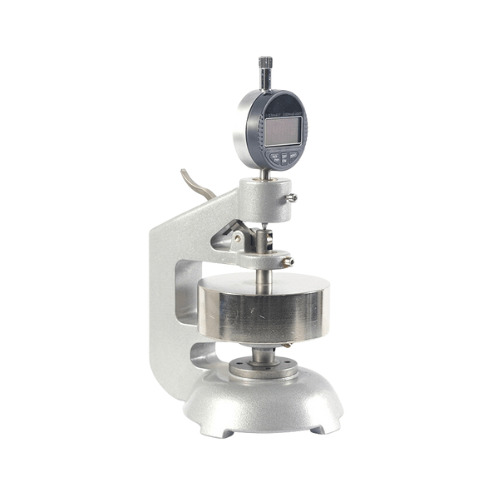

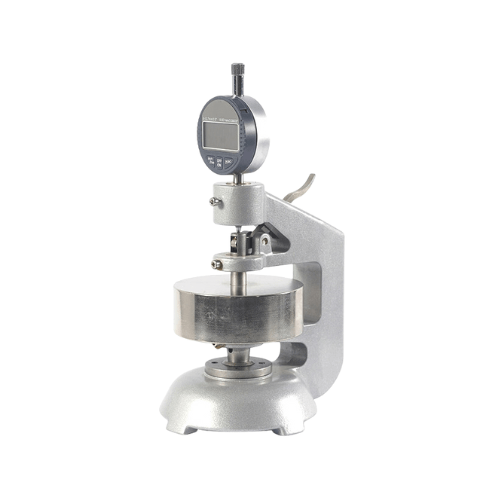

Acoustic Testing Pro Portable Digital Indicator Paper Thickness Gauge
Acoustic Testing Pro Portable Digital Indicator Paper Thickness Gauge is a special instrument for measuring the thickness of paper and cardboard.
Overview
Acoustic Testing Pro Portable Digital Indicator Paper Thickness Gauge is a special instrument for measuring the thickness of paper and cardboard. It is suitable for measuring the thickness of various papers below 4mm. It can be widely used for measuring the thickness of paper and other sheet materials.
Technical Specifications
| Measuring Range | 0 mm to 4 mm |
| Dividing | 0.01 mm |
| Contact Pressure | (100 ± 10) kPa |
| Contact Area | (200 ± 5) mm² |
| Parallelism of Surface Measurement | ≤ 0.002 mm |
| Indication Error | ± 0.0025 mm or ± 0.5 % |
| Indication Variability | ≤ 0.0025 mm or ≤ 0.5 % |
| Dimension | 6.54 in × 4.92 in × 10.24 in (166 mm × 125 mm × 260 mm) |
| Weight | 9.92 lbs (4.5 kg around) |
