Acoustic Testing Pro Portable Biogas Analyzer

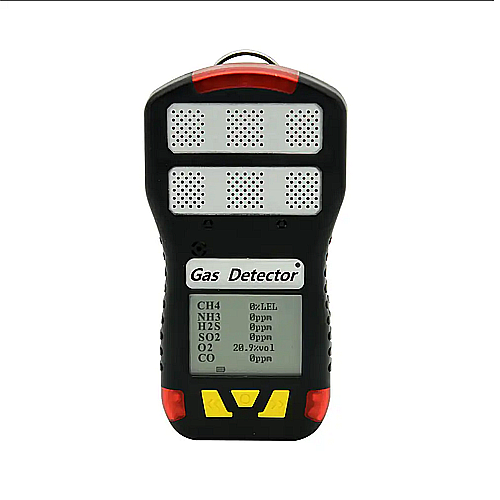

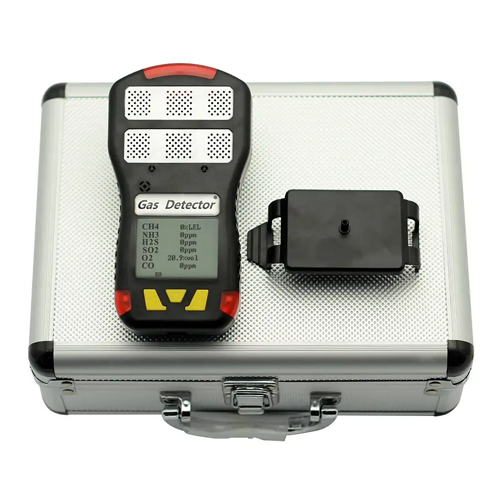

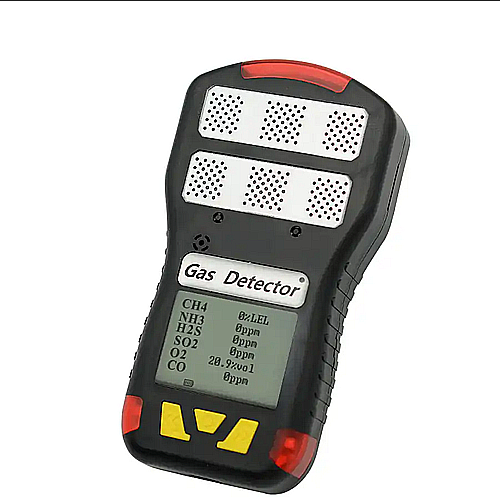

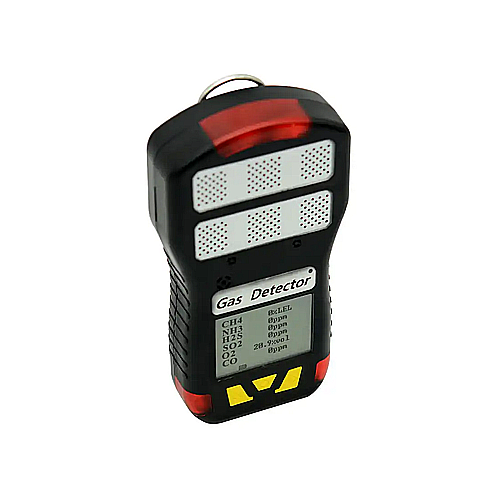

GAOTek Portable Biogas Analyzer gas alarm detector can detect up to 6 kinds of gases at the same time by natural diffusion, LCD large display in English,three alarms, small size,safety save electricity and simple operation.
Overview
GAOTek Portable Biogas Analyzer gas alarm detector can detect up to 6 kinds of gases at the same time by natural diffusion, LCD large display in English,three alarms, small size,safety save electricity and simple operation.
Features
- Imported sensitive sensors
- Liquid crystal display in English
- Three alarms: alarm lights, buzzer and vibration
- 1800mA Lithium battery, charge with micro USB interface
- Have real-time storage capabilities, can realize real time record on alarm and time
- Small size, safety save electricity, all English and simple operation
- Detect 6 kinds of gases at the same time,customized on five in one
- Can save 3000 alarm records,review by button(View by PC is optional)

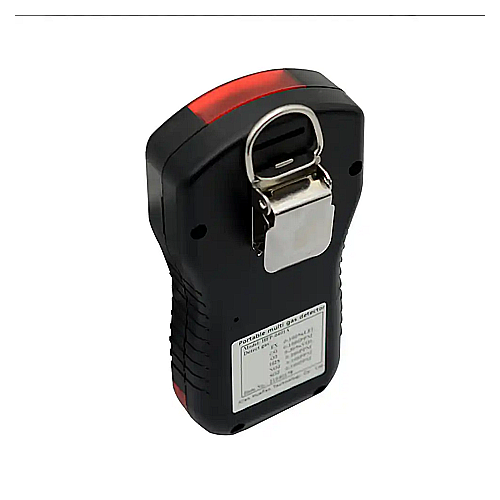

- Ergonomic design, comfort grab feel, back alligator clip design,easy to carry and use
- USB interface,can connect with computer (optional)
- Displaying battery capacity, low battery indication and automatic turn-off
- Support external sampling pump connection for confined space
- 100% strictly inspection before package and fast delivery
TECHNICAL SPECIFICATIONS
| Gas detected | CH4 H2 H2S 02 CO2 (Others can be customized) |
| Measuring range | CH4: (0% LEL to 100 %LEL) O2: (0% VOL to 30.0 %VOL) H2: (0 ppm to 1000 ppm) CO2: (0% VOL to 5% VOL) H2S:(0 ppm to 200 ppm) |
| Resolution | CH4: 1% LEL
O2: 0.1% vol. CO2: 0.01% vol H2S: 1 ppm |
| Sensor | Electrochemical + catalytic + Infrared |
| Alarms | Audible–buzzer with >80dB audible Visible–flashing red LED. >20000 mm visible Vibration-built-in vibration motor |
| Response time | <30 s |
| Alarm point | High and low. fully adjustable |
| Continuous working time | 12 hours and 7 days when do not collocate combustible gas |
| Display | Liquid Crystal Display(LCD) with calendar and clock |
| Storage | Save 3000 alarm records and real time value |
| Battery | Rechargeable Lithium battery |
| Charging time | 3 to 5 hours |
| Charging Voltage | DC5V |
| Optional | Software with USB (connect with computer for data analysis and printing) |
| Features | With zero setting, alarm point set, can be calibrated, restore factory settings |
| Certificates | CE/ATEX/ISO 9001 |
| Detecting gas | CH4 CO O2 H2S H2 |
| Accuracy | 1% LEL /1 ppm/ 0.1% VOL |
| Size | 4.48 in x 1.69 in x 2.95 in (114 mm x 43 mm x 75 mm) |
