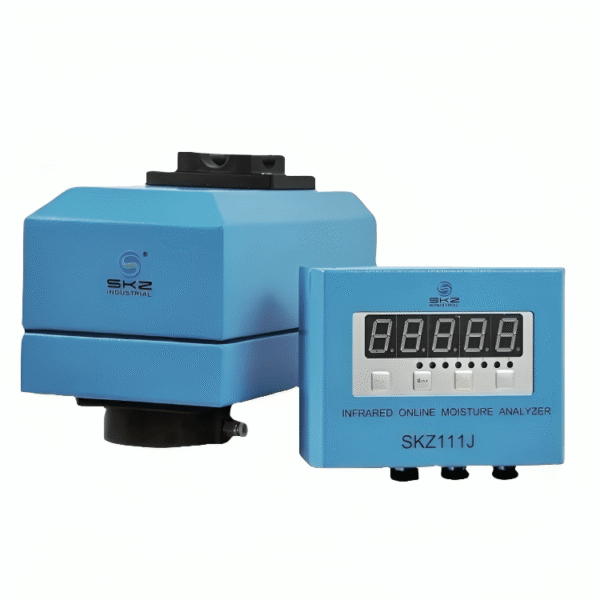

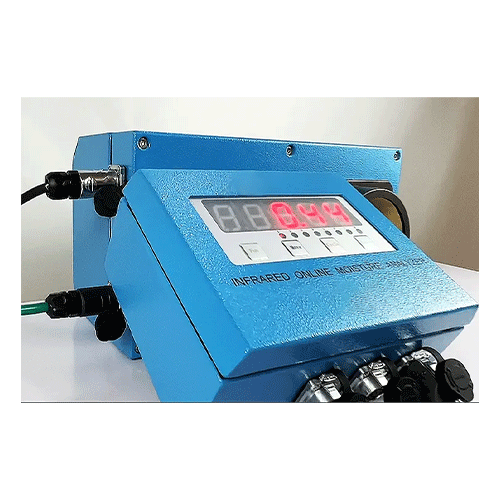

Acoustic Testing Pro Paper Conveyor Moisture Sensor Meter Analyzer
This Paper Conveyor Moisture Sensor Meter Analyzer has power of 100 W, operation humidity of ≤90% and measuring distance of 9.84 in x 3.93 in.
Features
- Fast measurements
- Reliability
- Non-contact and fast response
- Stable performance, high precision
- Easy to install, easy to operate
Technical Specifications
| Measurement resolution | 0.01% |
| Light Diameter | 1.57 in (40 mm) |
| Infrared bandwidth | ± 50 nm |
| Current signal | 4 mA to 20 mA |
| Measuring distance | 9.84 in x 3.93 in (250 mm ± 100 mm) |
| Measuring thickness | 0.003 in x 0.01 in (0.1 mm to 0.3 mm) |
| Power | 100 W |
| Operation humidity | ≤90% |
| Operation temperature | 32 °F to 122 °F (0℃ to 50℃) |
| Packing size | 17.32 in x 13.38 in x 20.07 in (440 mm x 340 mm x 510 mm) |
| Gross weight | 38.58 Lb (17.5 kg) |
