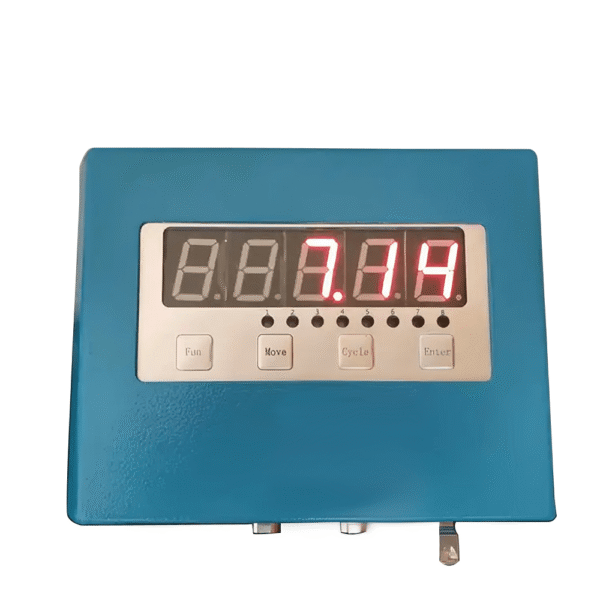

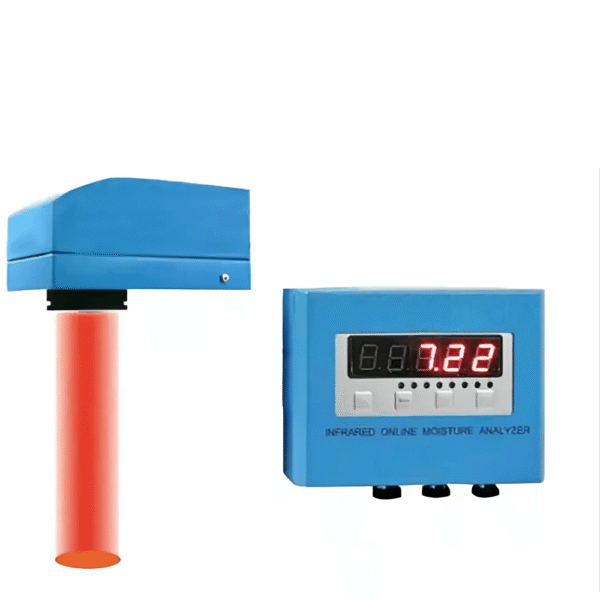

Acoustic Testing Pro Paper Belt Moisture Sensor Meter Analyzer
This Paper Belt Moisture Sensor Meter Analyzer has an infrared wavelength of 1940 nm and light diameter of 1.57 in and current signal of 20 mA.
Features
- Fast measurements
- Reliability
- Non-contact and fast response
- Stable performance, high precision
- Easy to install, easy to operate
Technical Specifications
| Static accuracy | 0.1% |
| Current signal | 4 mA to 20 mA |
| Filtering range | 0% to 2.5% |
| Light Diameter | 1.57 in (40 mm) |
| Infrared bandwidth | ± 50 nm |
| Infrared wavelength | 1940 nm |
| Measuring distance | 9.84 in ± 3.93 in (250 mm ± 100 mm) |
| Measuring thickness | 0.003 in to 0.01 in (0.1 mm to 0.3 mm) |
