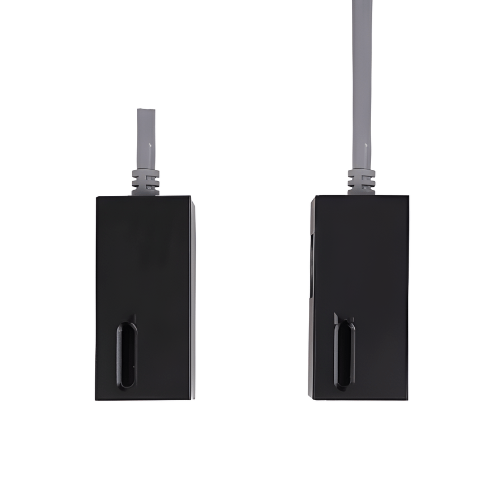

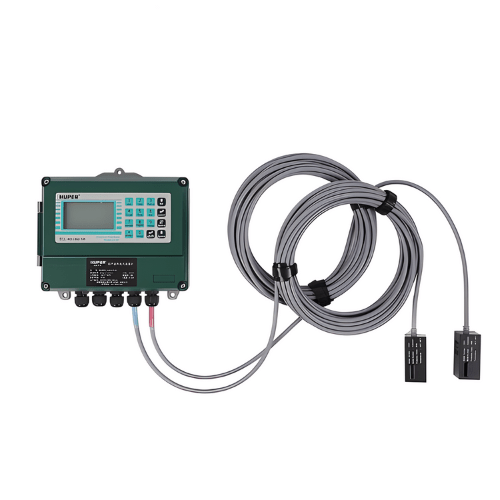

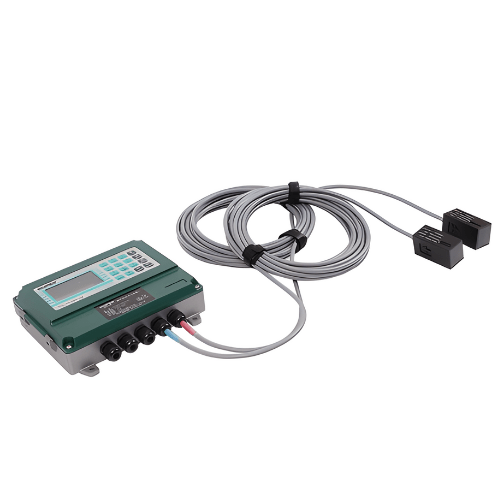

Acoustic Testing Pro Ordinary Ultrasonic Liquid Flow Meter
Acoustic Testing Pro ordinary ultrasonic liquid flow meter measures the liquid flow of the full pipe, can choose flameproof and intrinsically safe.
Overview
Acoustic Testing Pro ordinary ultrasonic liquid flow meter measures the liquid flow of the full pipe, can choose flameproof and intrinsically safe, measurable media: drinking water, river water, seawater, groundwater cooling water, high temperature water, sewage, lubricating oil, diesel oil, fuel oil chemical liquid, a single uniform liquid.
Technical Specifications
| Principle Of Measurement | Time-difference method |
| Operation | Keypad |
| Display | LCD |
| Shell Material | Engineering plastics ABS |
| Power Supply | 10 VDC to 36 VDC, 90 VAC to 245 VAC |
| Signal Output | 4 mA to 20 mA or pulse output, (optional RS232RS485, relay) |
| Protection Grade | Transmitter IP65, sensor IP68 |
| Sensor Wiring | Standard with 29.53 ft (9 m), the longest optional 853.02 ft (260 m) |
| Process Connection | External clip type and insert type |
| Measuring Media | Liquid |
| Measuring Range | ±0.03 m/s to ±5 m/s |
| Accuracy | 1% |
| Pipe Scope | DN DN25 to DN1200 Tier 1 DN25 to DN300 Tier 2 DN400 to DN600 Tier 3 DN700 to DN900 Tier 4 DN1000 to DN1200 |
| Working Condition Requirement | Single medium sound conducting liquid |
