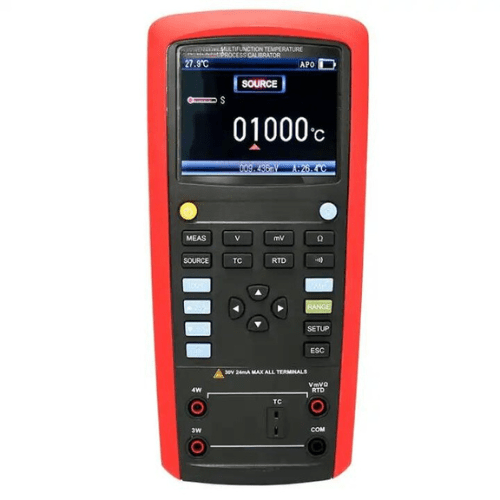

Acoustic Testing Pro Multifunctional Thermocouple Temperature
Acoustic Testing Pro multifunctional calibration thermocouple temperature it measures and sources loop current and voltage. It is designed with 0.02% accuracy, adjustable backlight and auto power off.
Overview
Acoustic Testing Pro multifunctional calibration thermocouple temperature it measures and sources loop current and voltage. It is designed with 0.02% accuracy, adjustable backlight and auto power off. It is a powerful tool for calibration, repair, and maintenance of mA loops.
Features
- Step ramp functions
- Source and measure accuracy up to 0.02%
- Rechargeable battery
- Contrast adjustment
- Auto power off (Time adjustable)
- Stores and recalls setups
- USB communication
- Measure and output different process signal in real time
- Pressure measure with specified pressure modules
- Sourcing pressure
- Provides 24 V loop power to transmitter
Technical Specifications
| DC Voltage | 50 mV 500 mV 50 V ± (0.02%+2) |
| Resistance | 500 Ω 5000 Ω ± (0.05%+10) |
| RTDs | Pt100 Pt200 Pt500 Pt1000 Cu10 Cu50 Cu100 Pt100 to 392 Pt100 to Ni120 |
| DC Voltage | 100 mV 1000 mV 10 V ± (0.02%+10) |
| Power | 1.2 V x 6 AA rechargeable battery |
| Resistance | 400 Ω 4000 Ω ± (0.05%+10) |
| RTDs | Pt100 to 385, Pt100 to 392, Pt100 to JIS, Pt200 to 385, Pt500 to 385, Pt1000 to 385, Cu10, Cu50, Cu100Ni120 |
| Display Count | 20000 |
| Operation temperature | 14 °F to 131 °F ( -10 °C to 55 °C) |
| Product size | 7.67 in x 3.74 in x 2.28 in (195 mm x 95 mm x 58 mm) |
| Product net weight | 1.43 lb (650 g) |
