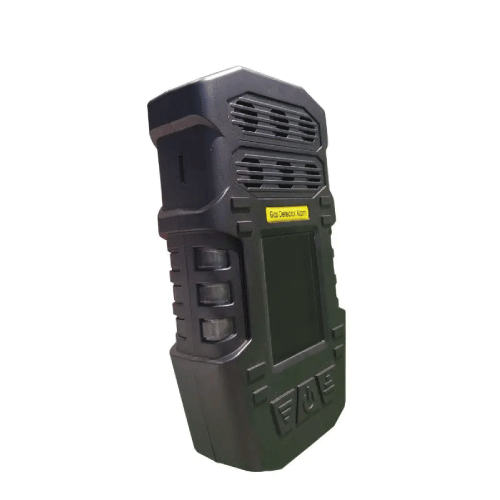

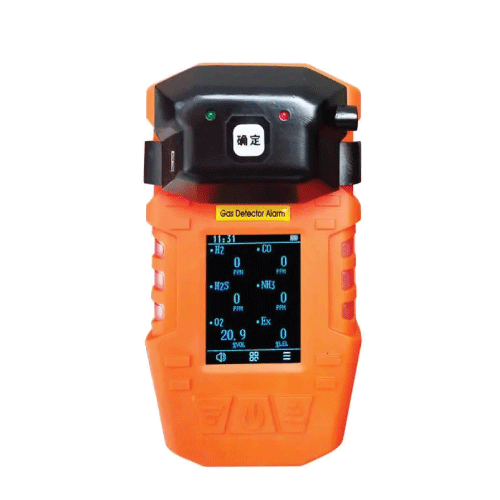

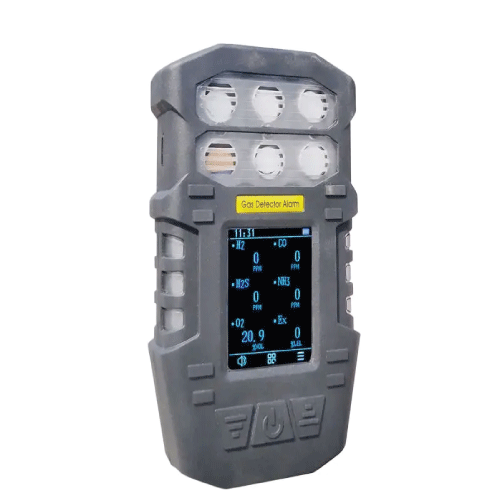

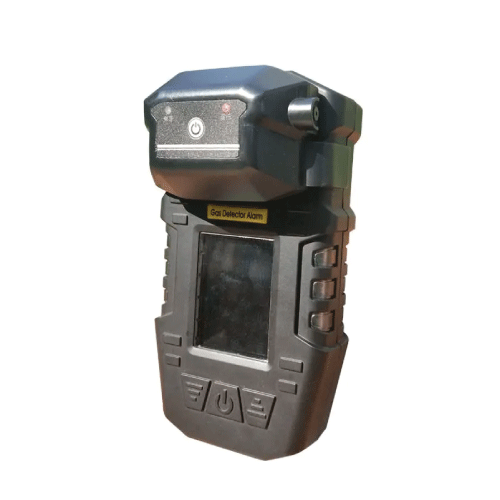

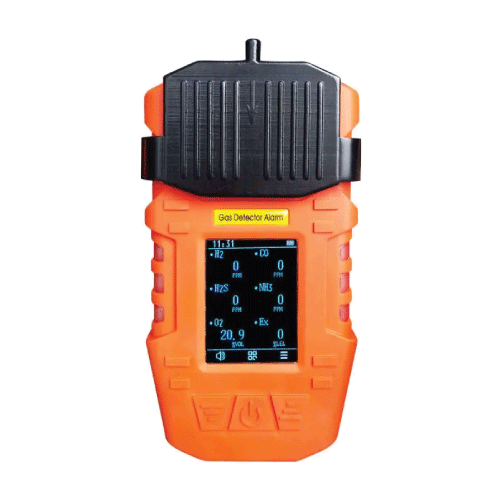

Acoustic Testing Pro Multi Gas Detector
Acoustic Testing Pro Multi Gas Detector adopts modular sensor elements–different sensors could be changed for different gas, full-colour LCD display technology that could be equipped with dozens of combustible and toxic gasses for detection, like H2, O2, CO, H2S, CH4, etc.
Overview
Acoustic Testing Pro Multi Gas Detector adopts modular sensor elements–different sensors could be changed for different gas, full-colour LCD display technology that could be equipped with dozens of combustible and toxic gasses for detection, like H2, O2, CO, H2S, CH4, etc. Custom-made gas detectors are available; multi-gas detectors are equipped with sound, light and vibration alarms, which are applied to concentration in complex environments. This product is suitable for chemical / pharmaceutical / municipal / water treatment, telecommunications, archaeology, laboratory, refrigeration, wine factory and other places.
Features
- Interchangeable sensor technology
- 4 in full-colour IPS screen
- Displays technical data and gas concentrations
- Comfortable Asian ergonomic design
- High IP encapsulation for durability
- Detects up to 7 gases simultaneously
- Stores 5000 data points
- Dust, explosion, and waterproof
- Intrinsically safe with anti-static design
- Adjustable time and alarms
Technical Specifications
| Detection principle | Electrochemistry/Catalysis/Thermal Conductivity/Infrared Spectrum |
| Sampling mode | Natural diffusion or optional (Special card self-priming pump) |
| Measurement error | ≤3% FS |
| Interface definition | U3 port (USB) |
| Display | Colour LCD |
| Alarm | Sound/light/vibration, triple alarm |
| Working time | Combustible gas 8 h, toxic gas 200 h |
| Environment humidity | 5% RH to 90% RH |
| Power | 3.7 V 2000 mAh Lithium-ion rechargeable battery |
| Explosion proof grade | Ex if IIB T3 Gb |
| Ingress protection | IP 6 |
| Environment temperature | -4 °F to 140 °F (-20 ℃ to 60 ℃) |
| Size | 6.1 in × 3.54 in × 1.42 in (155 × mm 90 × mm 36 mm |
| Weight | 1.1 lb (500 g) |
