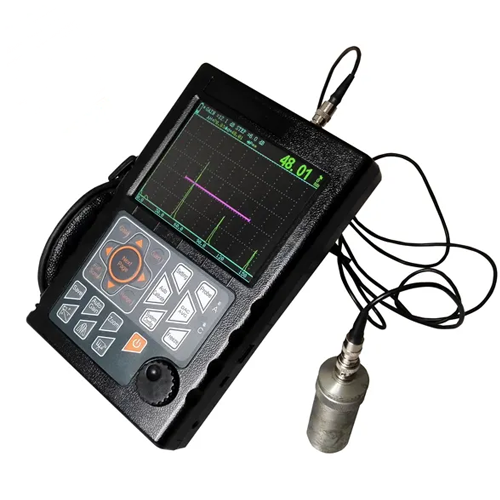

Acoustic Testing Pro Metal Testing Ultrasonic Flaw Detector
This metal testing ultrasonic flaw detector has automated calibration of transducer, Vertical linearity ≤3%, and Frequency range 0.5 MHz to 20 MHz.
Features
- Automated display precise flaw location
- Automated switch three staff gauge
- Automated calibration of the transducer
- Convenient to make and use DAC/TCG and AVG to evaluate the echo, the curve can be modified
- 6 Db DAC functions
- Automated gain and gain scan
- Peak hold and peak memory
Technical Specifications
| Power | Electronic |
| Measuring range | 0 in to 393.7 in (0 mm to 10000 mm) |
| Vertical linearity error | ≤3% |
| Horizontal linearity error | ≤0.1% |
| Sensitivity margin | ≥62 dB |
| Dynamic scope | ≥34 dB |
| Resolution | ≥36 dB |
| Frequency range | 0.5 MHz to 20 MHz |
| Gain | 0 dB to 120 dB |
| Velocity | 1000 to 15000 |
| Weight | 2.20 lb (1 kg) with battery |
