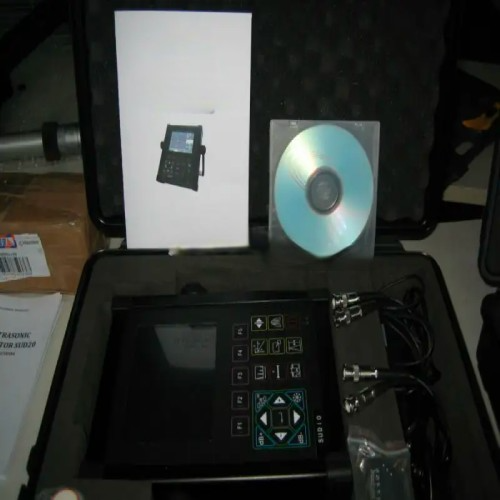

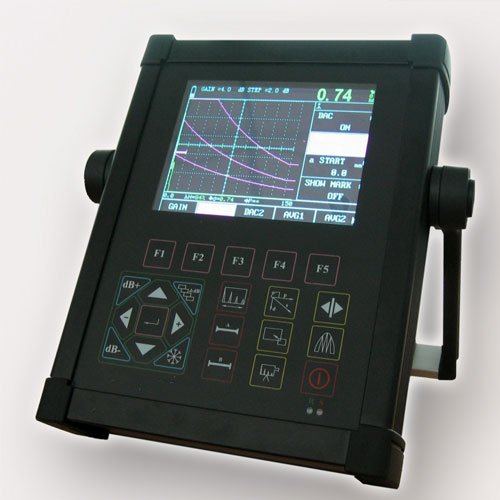

Acoustic Testing Pro Metal Crack Detector
This Metal Crack Detector has a measuring range of 0.019 in to 393.7 in, frequency range of 0.5 MHz to 20 MHz and working time up to 8 hours.
Features
- Automatic calibration of transducer Zero Offset and/or Velocity
- Automatic gain
- Peak Hold and Peak Memory
- Automatic display precise flaw
- Automatic switch three staff gauge
- Ten independence setups, any criterion can be input freely
- It can work in the scene without test block
- Big memory of 300 A graph and 30000 thickness value
- B scan
- RS232 port, communication with pc is easy
- The embedded software can be online updated
- Li battery, continue working time up to 8 hours
Technical Specifications
| Measuring range | 0.02 in to 393.7 in (0.05 cm to 1000 cm) |
| Vertical linearity error | ≤2.5% |
| Horizontal linearity error | ≤0.1% |
| Sensitivity margin | ≥60 dB |
| Dynamic scope | ≥32 dB |
| Resolution | ≥40 dB |
| Frequency range | 0.5 MHz to 20 MHz |
| Gain (dB) | 0 to 110 |
| Velocity | 1000 to 13000 |
| Measurement mode | Single, dual, THRU |
| Reject | 0 % to 80% |
| Pulse shift (μs) | -20 to 3400 |
| Zero (μs) | 0.0 to 99.99 |
| Port type | BNC |
| Operating temperature | -4 °F to 122 °F (-20 °C to 50 °C) |
| Size | 9.44 in x 7.08 in x 1.96 in (240 mm x 180 mm x 50 mm) |
| Weight | 4.85 lb (2.2 kg) |
