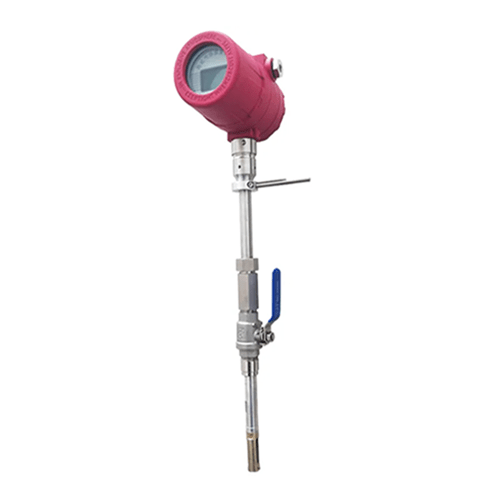

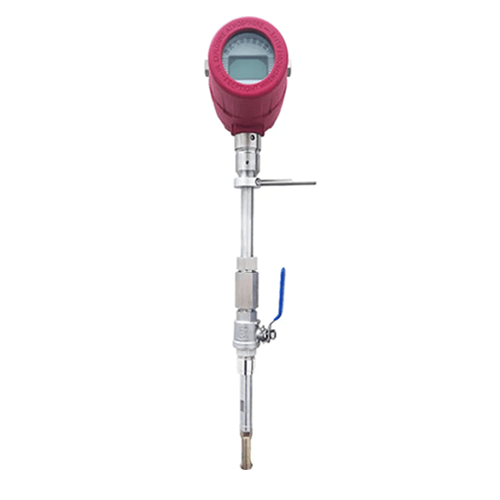

Acoustic Testing Pro Mass Flow Meter Air Flow Sensor
Acoustic Testing Pro mass flow meter air flow sensor is convenient, it doesn’t require temperature and pressure compensation for accurate gas flow measurement.
Overview
Acoustic Testing Pro mass flow meter air flow sensor is convenient, it doesn’t require temperature and pressure compensation for accurate gas flow measurement. It has a wide range ratio which can measure wide range of gas flow rates.
Features
- Doesn’t require temperature and pressure compensation
- Wide range ratio
- No pressure loss
- With corrosion-resistant sensor
- Easy to install and maintain
- With a full-range expert algorithm
Technical Specification
| Measure Media | Various Gas except acetylene gas |
| Accuracy | 1% FS to 2.5% FS |
| Supply Voltage | DC 24 V or AC 220 V |
| Responding Speed | 1 second |
| Signal Output | 4 mA to 20 mA, RS485, Hart, Pulse |
| Alarm | 1-2 relay normally open contacts |
| Display | Four lines of LCD |
| Protection Grade | IP65, IP67 |
| Sensor Housing Material | Stainless Steel |
| Working Pressure | 580.15 PSI |
| Pipe diameter range | DN15, 78.74 in (2 m) |
| Working Temperature | Sensor: -40 °F to 428 °F (-40 °C to 220 °C)Converter: -4 °F to 113 °F (-20 °C to 45 °C) |
