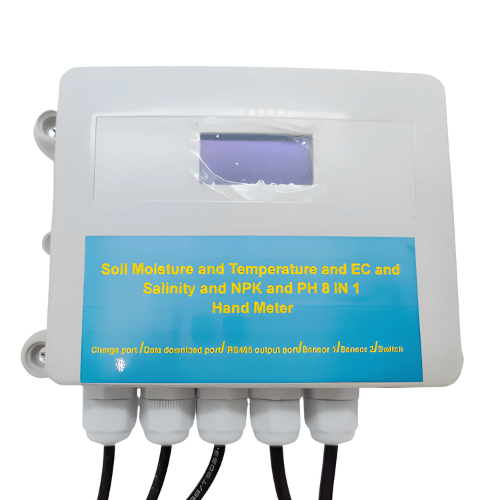

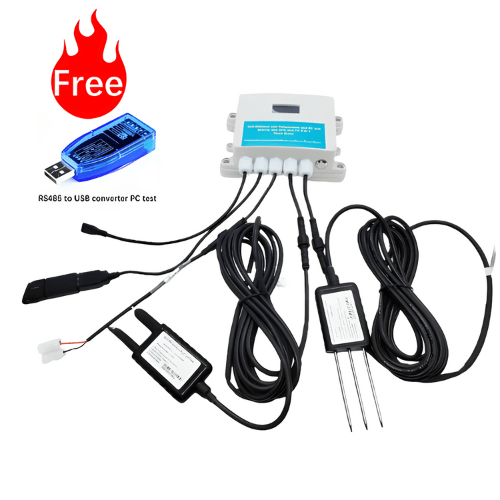

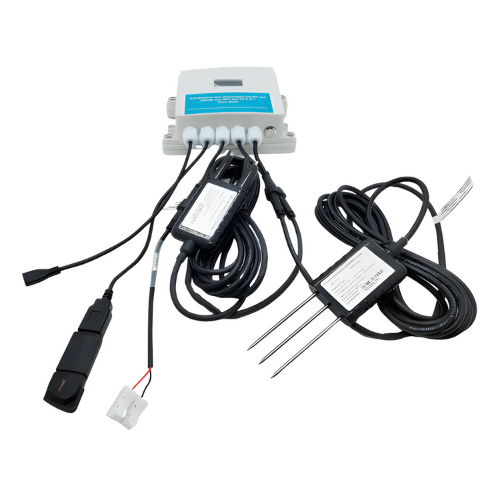

Acoustic Testing Pro Integrator Moisture Analyzer Monitor Logger
This Integrator Moisture Analyzer Monitor Data Logger has salinity measuring resolution of 10 ppm, PH resolution of 0.01, and supply voltage of 5 VDC.
Features
- 8 in 1 type sensor
- Screen show the real time data
- Store the data in the U disk
Technical Specifications
| Probe Type | Probe electrode | |
| Measurement Parameters | Soil Soil NPK moisture temperature EC salinity PH Value | |
| Npk Measuring Range | 0 Mg/kg to 1999 mg/kg | |
| Npk Measurement Accuracy | ±2%FS | |
| Npk Resolution | 1 Mg/Kg, mg/L | |
| Moisture Measuring Range | 0% to 100% | |
| Moisture Measurement Accuracy | ±2%, m3 | |
| Moisture Measurement Resolution | 0.1% RH | |
| Ec Measuring Range | 0 μs/cm to 20000 μs/cm | |
| Ec Measuring Accuracy | ±3% In the range of 0 μs/cm to 10000 μs/cm ±5% In the range of 10000 μs/cm to 20000 μs/cm |
|
| Ec Measuring Resolution | 10 μs/cm | |
| Salinity Measuring Range | 0 Ppm to 10000 ppm | |
| Salinity Measuring Accuracy | ±3% In the range of 0 ppm to 5000 ppm 5% in the range of 5000 ppm to 10000 ppm | |
| Salinity Measuring Resolution | 10 Ppm | |
| Ph Measuring Range | 3 PH to 7 PH | |
| Ph Measurement Accuracy | ±0.3 PH | |
| Ph Resolution | 0.01 PH, 0.1 PH | |
| Outputsignal | Screen Datalogger with data store in excel | |
| Supply Voltage | 5 VDC | |
| Stabilization Time | 5 Secs after to 10 secs after power on | |
| Response Time | <1 Sec | |
| Sensor Sealing Material | ABS engineering plastic, epoxy resin | |
| Cable Specification | Standard 78.74 in (2 m) | |
| Working Temperature Range | -22 ℉ to 158 ℉ (-30 ℃ to 70 ℃) |
