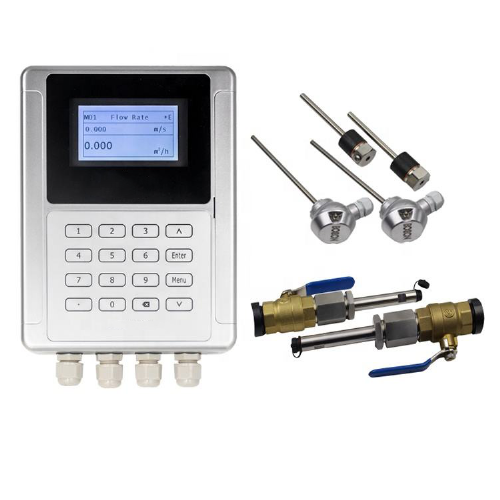

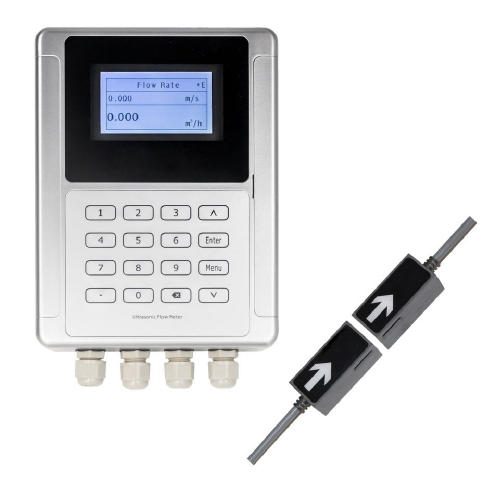

Acoustic Testing Pro Insertion Type Ultrasonic Flowmeter

Overview

Acoustic Testing Pro insertion type ultrasonic flowmeter is based on the original imported FPGA integrated circuit from America’s Intel corporation. Its algorithm belongs to a combination of threshold comparison gate circuit delay method and high-speed ADC correlation method. The main advantage is reflected in the clamp-on ultrasonic flow meter. It is different from other 99% domestic clamp-on ultrasonic flow meters which are using the outdated capacitor charging algorithm or using algorithm of either comparison or correlation alone. So, our products belong to a high-end transit-time ultrasonic flow meter. Its measuring frequency can be more than 300 times per second (domestic other 99% clamp-on ultrasonic flow meters are less than 50 times per second, or even just once per second). Its accuracy is strictly controlled to be better than 1.0%. Moreover, its tolerance rate to bubbles in the measured pipe has been greatly improved, and the maximum tolerance time for continuous bubbles or impurities is 5 seconds.

Features

• It can be operated in ambient temperature -50°F to 122 °F (-10 ° C to 50 ° C).
• It has a dot matrix character backlit LCD display.
• Double-shielded transducer cable.
• It belongs to a high-end transit-time ultrasonic flow meter.

Technical Specifications
