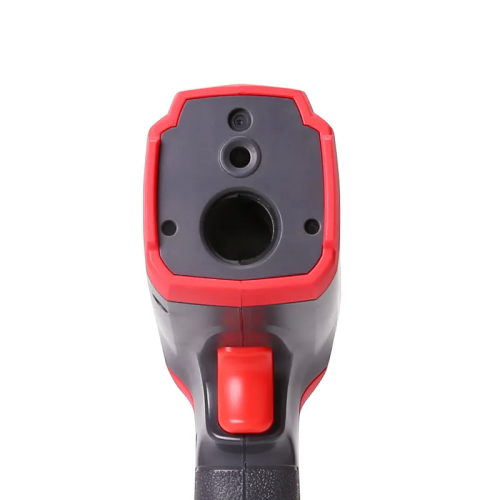

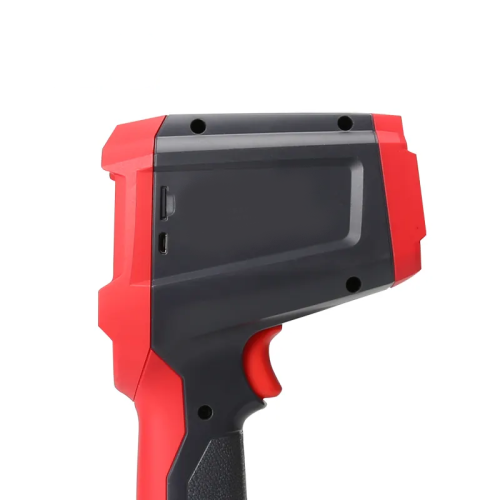

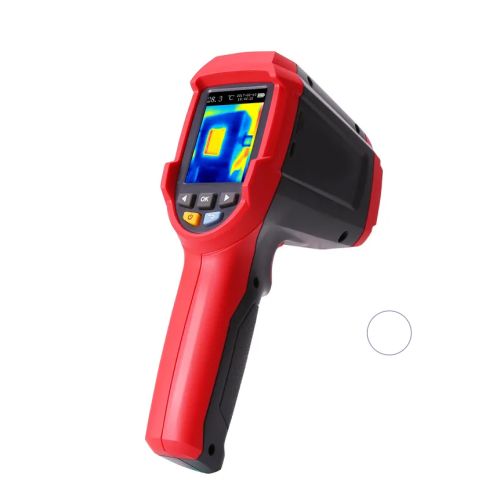

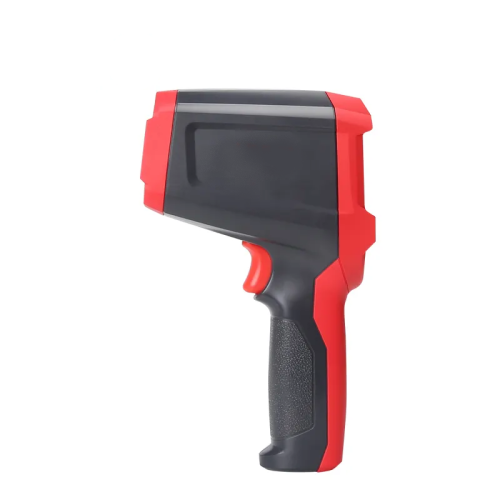

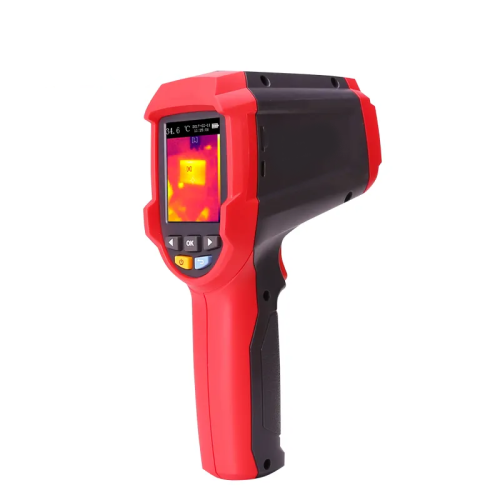

Acoustic Testing Pro Infrared Thermal Imaging Machine
Acoustic Testing Pro infrared thermal imaging machine traditional infrared thermometers can only measure single temperature points.
Overview
Acoustic Testing Pro infrared thermal imaging machine traditional infrared thermometers can only measure single temperature points. This thermal imager can detect temperature variations of an area through a 2.4 in LCD display. Its dual lasers can quickly lock in measurement area and display target temperature. The standard package also includes an 8 GB Micro SD card for image and temperature data storage. Its image blending feature can combine infrared and normal camera images together, allowing in-depth display for areas of interest.
Features
- Dual lasers that lock in measurement area
- LCD display
- Micro SD card for data storage
- Image blending feature
- 2600 mAh Li-ion battery
Technical Specification
| Basic Accuracy | ±35.6 °F (±2 °C) / ±2% |
| D:S Ratio | 20: 01 |
| Response Time | 250 ms |
| Pixel Size | 669.29 µin (17 μm) |
| Image Modes | Thermal, Thermal Blending, Digital Camera |
| Palettes | Iron, rainbow, grey |
| Blending Setup | 0% (Pure infrared), 25%, 50%, 75%, 100% (Pure visible) |
| Spectral Range | 314.96 µin to 551.18 µin (8 µm to 14 μm) |
| FOV | 51° horizontal |
| IFOV | 11 mrad |
| NETD | -459.661 °F (-273.145 °C) |
| Image Frequency | =<9 Hz |
| Saved Image Format | BMP |
| Visible Light Camera | 2 megapixels |
| Display | 2.4-in TFT LCD |
| Display Resolution | 320 pixels x 240 pixels |
| Power | Li-ion battery (2600 mAh) |
| Display Colors | Red and grey |
| Temperature Range | -22 °F to 752 °F (-30 °C to 400 °C) |
| Size | 8.07 in x 4.88 in x 2.55 in (205 mm x 124 mm x 65 mm) |
| Weight | 0.81 lb (370 g) |
