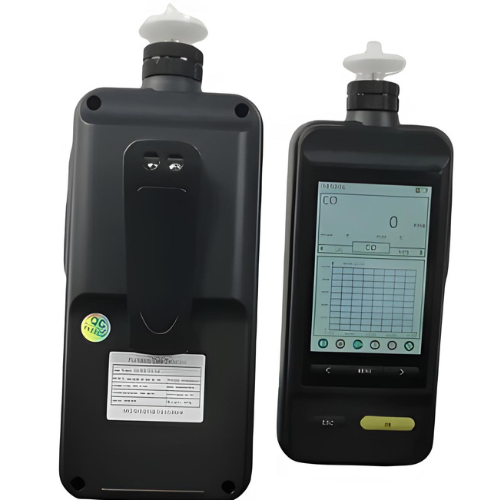

Acoustic Testing Pro Hydrogen Chloride Gas Leak Detector
Acoustic Testing Pro hydrogen chloride gas leak detector continuous measurement hydrogen chloride and gas detector with hydrogen leak detector alarm system with built-in pump.
Overview
Acoustic Testing Pro hydrogen chloride gas leak detector continuous measurement hydrogen chloride and gas detector with hydrogen leak detector alarm system with built-in pump.
Features
- Optional fall alarm function to ensure safety of underground workers is more secure
- Optional 8G large-capacity memory card, support one-click download function, if with 4 kinds of gases Storage interval time is 5s, can be used for 7 years and this function is standard provided if the detector with optional air sampling
- Optional PC storage software download, analysis storage data
- Optional external Bluetooth printer.
Technical Specifications
| Gas detected | Hydrogen chloride hcl |
| Detection principle | Catalytic combustion principles |
| Measure range | 0 ppm – 5000 ppm,10000 ppm, 5 % Vol, 50 % Vol, 100 % Vol, 100 % LEL |
| Resolution | 0.01 % VOL |
| Sampling method | Built-in stable flow pump, flow range: 0 ML/Min – 500 ML/Min |
| Modular structure | Can detect up to 1- 4 kinds of gases |
| Concentration unit | ppm, mg/m3, % VOL, % LEL, can be switched by one button |
| Display | 3.5 – inch color display, resolution 320 x 480 |
| Display mode, | Multiple display modes select-able: multi-channel data mode, multi-curve mode, single channel + single curve mode |
| Built-in printer or external Bluetooth printer (optional with extra charge) | |
| Battery capacity | 3800 mas |
| Charging interface | Usb charging interface, 5 V/ 2 A standard charger |
| Filter device | Equipped with a multi-layer filter to efficiently filter oil, water and dust. |
| Wireless network | Bluetooth (with print function), zigbee, lora + (relay dtu), dtu (optional with extra charge) |
| Network frequency | Lora (470 m), dtu (2.4 g) |
| Wireless trans. distance | Lora (1.6 km), dtu (unlimited) |
| Precision | 2 % fs |
| Response time | ≤ 8 s |
| Repeatability | ≤ ± 1% |
| Zero shift | ≤ ± 1 % (f.s / year) |
| Working humidity | 0 % RH – 95 % RH (no condensation) (high humidity can be selected with filter drying device) |
| Explosion-proof | Exic ii ct3 gc |
| Recovery time | ≤ 10 s |
| Linearity error | ≤ ± 1 % |
| Temperature and humidity detection range | Temperature: – 20 °C to 251 °C (- 4 °F to 122 °F), resolution: 32.18 °F (0.1 °C)
Humidity: 0 % Rh to 99 % Rh, resolution: 1 % Rh (optional) |
| Dimensions | 10.62 in x 2.95 in x 1.61 in (270 mm x 75 mm x 41mm) |
| Weight | 0.88 lb (0.4 kg) |
