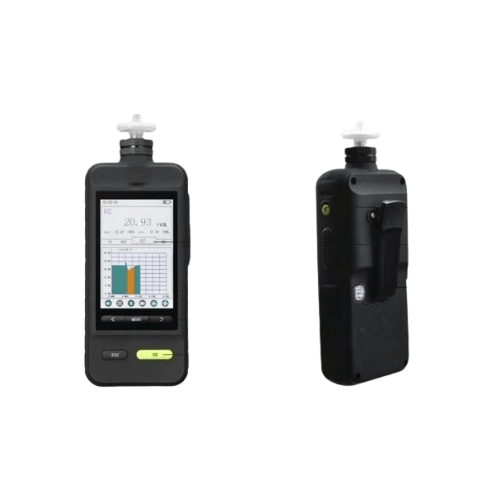

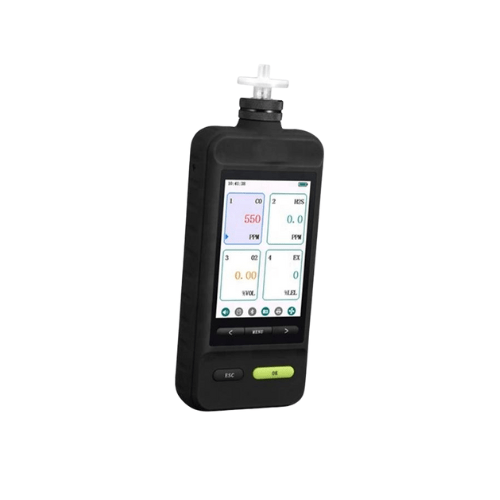

Acoustic Testing Pro Hydrogen Chloride Gas Leak Detector
Acoustic Testing Pro hydrogen chloride gas leak detector continuous measurement hydrogen chloride and gas detector with hydrogen leak detector alarm system with built-in pump.
Overview
Acoustic Testing Pro hydrogen chloride gas leak detector continuous measurement hydrogen chloride and gas detector with hydrogen leak detector alarm system with built-in pump.
Features
- 5 inch high-definition color screen
- Flashlight function
- Multi-gas test, display mode switch (USED FOR MULTI-GAS)
- Flexible and adjustable pumping system
- Multi-layer filter
- Multiple gas display units
- Powerful, more user-friendly operation
Technical Specifications
| Gas detected | Hydrogen chloride HCL |
| Detection principle | Electrochemical principles |
| Sampling method | Built-in stable flow pump, each flow pump is equipped in each independent module, pump flow is adjustable in ten steps, flow range: 0 mL/Min to 500 mL/Min |
| Modular structure | Can detect up to 1 to 4 kinds of gases |
| Concentration unit | ppm, mg/m3, % VOL, % LEL, can be switched by one button, and the concentration value is automatically converted by the internal system |
| Display | 3.5 – inch color display, resolution 320 x 480 |
| Communication and data download | Output USB port
Optional pc software to download in excel format, store, analyze |
| Display content | Gas formula, concentration data, unit of measure, gas curve trend, battery level, time, pump status, screen capture status,
optional functions: temperature, humidity, pressure, wireless status, printer status |
| Display mode | Multiple display modes selectable, multi-channel data mode, multi-curve mode, multi-channel data + multi-curve mode, single channel + single curve mode |

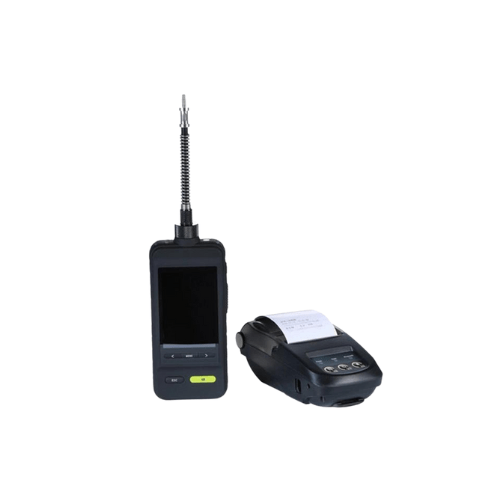

| Built-in printer or external Bluetooth printer (optional with extra charge) | |
| Battery capacity | 3800 mA |
| Charging interface | Usb charging interface, 5 V or 2 A standard charger |
| Filter device | Equipped with a multi-layer filter to efficiently filter oil, water and dust. |
| Wireless network | Bluetooth (with print function), zigbee, lora + (relay dtu), dtu (optional with extra charge) |
| Wireless trans. Distance | Lora (1.6 km), dtu (unlimited) |
| Precision | 2 % FS |
| Response time | ≤ 8 s |
| Repeatability | ≤ ± 1 % |
| Zero shift | ≤ ± 1 % (F.S / year) |
| Working humidity | 0 to 95% RH (no condensation) (high humidity can be selected with filter drying device) |
| Explosion-proof | Exic II CT3 Gc |
| Recovery time | ≤ 10 s |
| Linearity error | ≤ ± 1 % |
| Temperature and humidity detection range | Temperature: – 4 °F to 122 °F(- 20 °C to 50 °C), resolution: 32.18 °F (0.1 °C)
Humidity: 0 % RH to 99 % RH, resolution: 1% RH (optional) |
| Dimensions | 10.62 in x 2.95 in x 1.61 in
(270 mm x 75 mm x 41 mm) |
| Weight | 0.88 lb (0.4 kg) |
