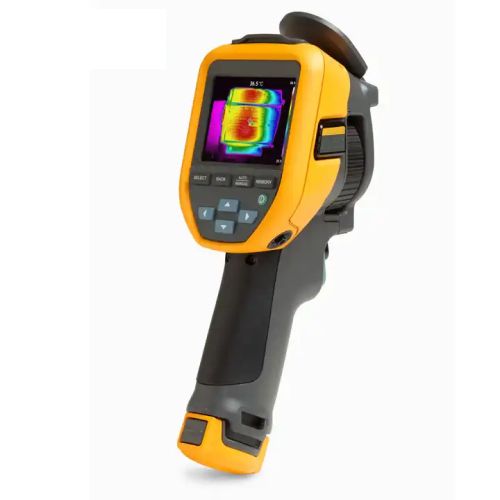

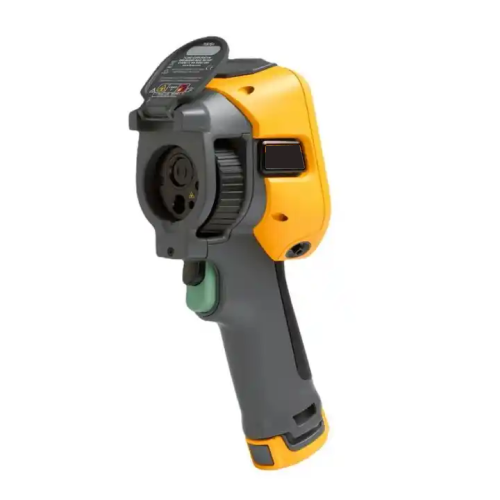

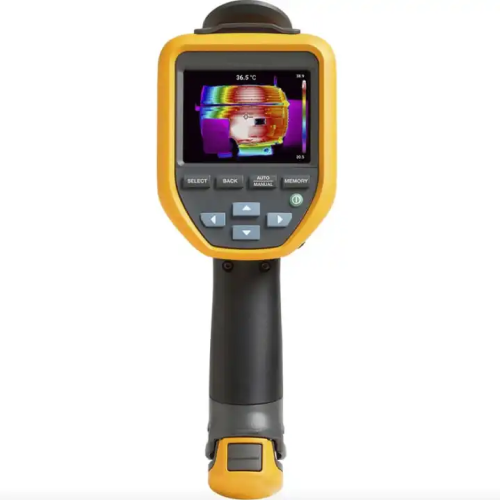

Acoustic Testing Pro High-Resolution Thermal Imager
This High-Resolution Thermal Imager has focus distance of 1.6 in, 42° x 30° field of view, thermal sensitivity of 40 mk and 5 MP digital camera.
Features
- Rugged, reliable, and accurate
- 5 in VGA Touchscreen LCD
- Water and dust resistant (IP54)
- Asset Tagging
- Voice annotation
Technical Specifications
| Infrared Resolution | 384 pixels x 288 pixels (110,592 ppi) |
| Field of View | 42° x 30° |
| Minimum Focus Distance | 1.64 in (0.5 m) |
| Focus System | Manual focus and 1-meter focus marker |
| Picture-In-Picture (PIP) | Yes |
| Thermal Sensitivity | 40 mk |
| Level and Span | Smooth auto and manual scaling |
| Fast Auto-Rescale in Manual Mode | Yes |
| Minimum Span | Manual mode: 4.5 °F (3 °C) Auto mode: 9 °F (5 °C) |
| Built-in Digital Camera (Visible Light) | 5 MP |
| Frame Rate | 27 Hz |
| Memory | Internal: up to 500 images External: ≥4 GB SD card (>1000 images) |
| Image File Formats | Non-radiometric BMP JPEG or fully radiometric is 2 |
| Voice Annotation | Yes, 60-second maximum audio recording via Bluetooth Audio Headset Profile (HSP) connection to an external device |
| Text Annotations | After IS 2 captures, the user can type in a note using the on-screen keyboard |
| Accuracy | ± 35.6 °F (±2 °C) or 2% (whichever is greater) at 77 °F (25 °C) ambient temperature |
| On-Screen Emissivity Correction | The “top ten” material list plus numerical adjustment between 0.01 and 1.00 |
| Standard Palettes | 6 |
| Color Alarms | Yes. User-selectable hot and cold points and internal/external range color alarms. Modifies palettization of IR image by limiting which pixels are drawn using palette colours based on the pixel temperature |
| Infrared Spectral Band | 8 μm to 14 μm |
| Relative Humidity | 10% to 95% non-condensing |
| Spot Temperature | Centre spot (unmovable) |
| Safety Standards | IEC 61010-1: Pollution Degree 2 |
| Electromagnetic Compatibility | IEC 61326-1: Portable Electromagnetic Environment; IEC 61326-2-2 CISPR 11: Group 1, Class A |
| Battery | Type: Lithium-ion rechargeable battery Life: ≥3.5 hours continuous without Wi-Fi (actual life depends on settings and usage) Charging time: ≤2.5 hours to full charge |
| Enclosure Rating | IP 54 |
| Supported Languages | Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
| RoHS Compliant | Yes |
| Dimensions | 10.5 in x 4 in x 5.7 in (26.67 cm x 10.16 cm x 14.5 cm) |
| Weight | ≤5 lb (2.27 kg), including batteries |
| Temperature | Operating: 14 °F to 122 °F (-10 °C to 50 °C) Storage: -4 °F to 122 °F (-20 °C to 50 °C) without batteries |
| Temperature Range | -4 °F to 1022°F (-20 °C to 550 °C) |
